Jack Sockets
-

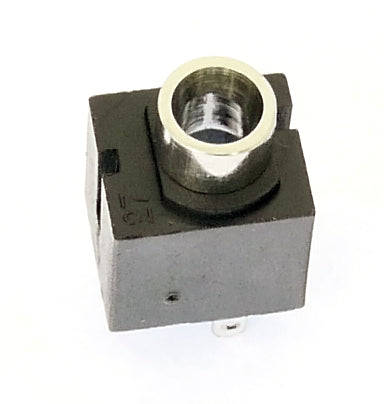

Hooya PJ-301C Stereo 3.5mm Jack Socket with Chrome Barrel
A stereo 3.5mm jack socket manufactured by Hooya. This socket has a plated barrel and as such does not use a mounting nut. Rated at 30Vdc @ 0.5A Contact resistance: 0.05R Insertion life: 5,000
£0.29
-

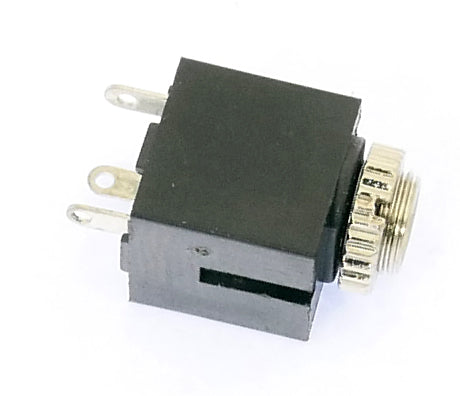

Hooya PJ-301CM Stereo 3.5mm Jack Socket with Knurled Nut
A stereo 3.5mm jack socket manufactured by Hooya complete with knurled nut. Rated at 30Vdc @ 0.5A Contact resistance: 0.05R Insertion life: 5,000
£0.55
-

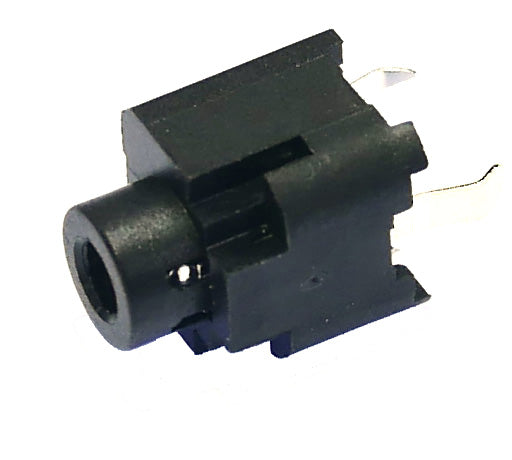

Soundtronics Soundtronics 3.5mm Stereo Unswitched Jack Socket PCB Mounting
A vertically mounting 3.5mm stereo jack socket. Distance between PCB and underside of the panel is just 10.5mm. Also available in mono version 7212-239.
£0.70
-

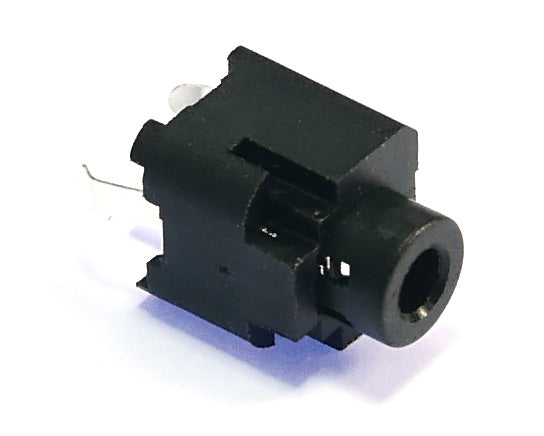

Soundtronics Soundtronics 3.5mm Mono Unswitched Jack Socket PCB Mounting
A vertically mounting 3.5mm mono jack socket. Distance between PCB and underside of the panel is just 10.5mm. Also available in stereo version 7212-240.
£0.43
-

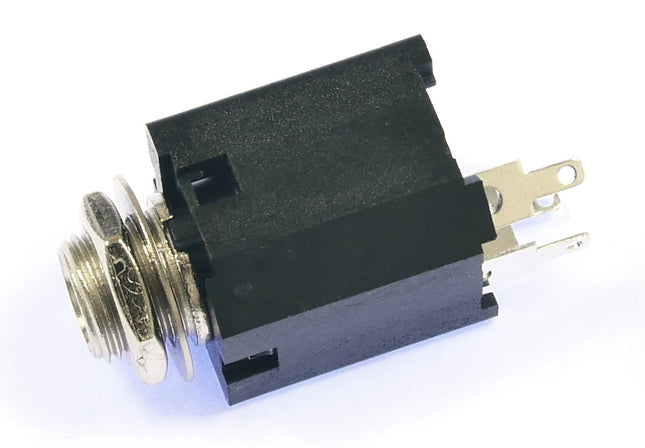

Soundtronics 1/4" (6.35mm) Panel Mount Mono Jack Socket -Type A
This 1/4" (6.35mm) mono jack socket is the Soundtronics version of the Switchcraft 112APC which has been the standard jack socket we have used with our synth kits. These sockets are identical in size and shape to the 112APC. Specification: Temperature range: -20 to +70 Deg C Current rating: 0.5A at 30Vdc Contact resistance <0.05 ohms Life span: 5,000 insertions Insulation resistance: >100M
£0.90
-
Switchcraft Switchcraft 114BPC 1/4" (6.35mm) Panel Mount Stereo Jack Socket
These 1/4" panel mount stereo sockets are very popular in the audio / music world where their reputation for quality is evident. Featuring a 7mm long threaded metal busing and a switched contact. RoHS compliant Manufacturers part number 114BPC
£3.96
-

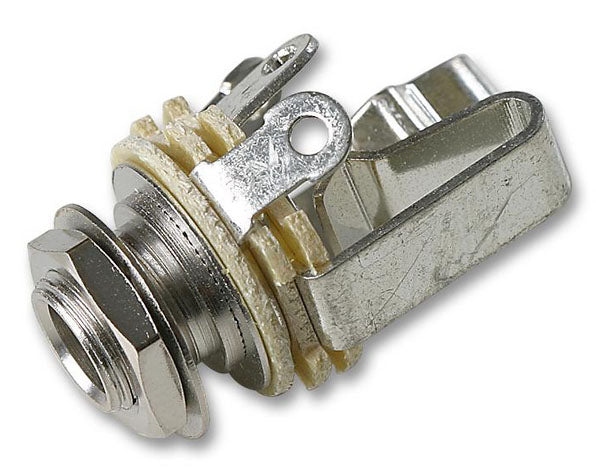

Switchcraft Switchcraft 112APC 1/4" (6.35mm) Panel Mount Mono Jack Socket
Update, we used to supply these with solder tag terminals, they are now supplied with PCB tags. We actually find the PCB tags are easier to solder wires to plus they directly fit our socket PCB breakout boards that simplify panel wiring. These 1/4" panel mount mono sockets are very popular in the audio / music world where their reputation for quality is evident. Featuring a 7mm long threaded metal busing and a closed switch contact (see datasheet, circuit option 2A). RoHS compliant Manufacturers part number 112APC
£3.06
-

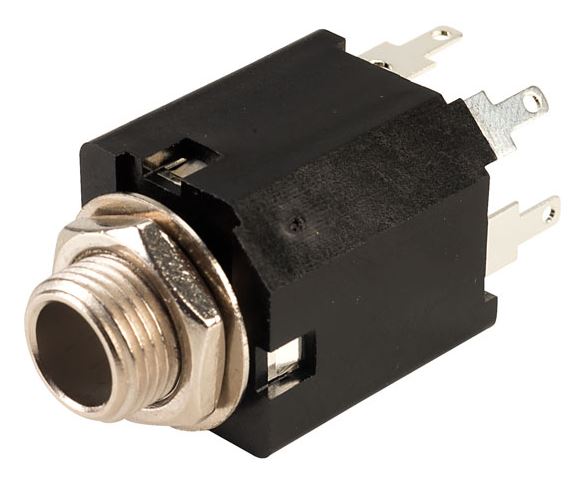

Soundtronics 6.35mm (1/4") Box Style Panel Mount Stereo Jack Socket
A standard 6.3mm (¼in) box style switched 3-pole jack socket with 2-poles switched upon insertion of the jack plug. Suitable for PCB mounting or hard wired as required Nickel plated metal bush and fixing nut Black colour Rated 0.3A, 16V DC Panel cut-out 10.8mm
£0.92
-

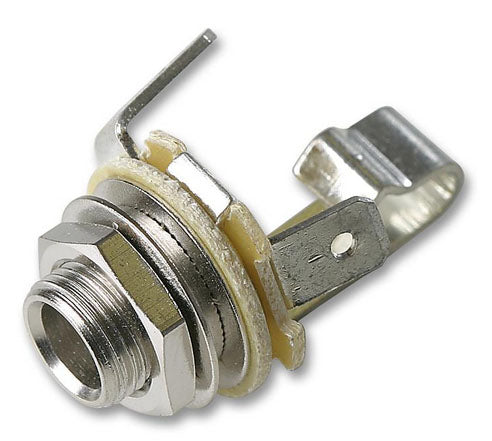

Neutrik 6.35mm (1/4") Neutrik NYS230 Open Stereo Panel Jack Socket
The NYS230 from Neutrik is a 3 pole, open 1/4'' stereo phone jack. This jack comes with 2 contacts, washer and nut, suitable for panel thickness of 3.5mm with 0.205" FASTON tabs which can also be soldered. Despite the 3.5mm specified maximum panel thickness of 3.5mm, they can be still be used with our synth front panels even with our 3mm aluminium back panels. Brass (CuZn39Pb3) contacts with SnCe plating Brass (CuZn39Pb3) shell with nickel shell plating Dielectric strength of 0.5KVDC Complies with IEC 68-2-20 solderability Lifetime of 1000 mating cycles Temperature range from -20°C to 70°C
£1.23
-
Neutrik 6.35mm (1/4") Neutrik NYS229 Open Mono Panel Jack Socket
The NYS229 from Neutrik is a 2 pole, open 1/4'' mono phone jack. This jack comes with 2 contacts, washer and nut, suitable for panel thickness of 3.5mm with 0.205" FASTON tabs. Despite the 3.5mm specified maximum panel thickness of 3.5mm, they can be still be used with our synth front panels even with our 3mm aluminium back panels. Brass (CuZn39Pb3) contacts with SnCe plating Brass (CuZn39Pb3) shell with nickel shell plating Dielectric strength of 0.5KVDC Complies with IEC 68-2-20 solderability Lifetime of 1000 mating cycles Temperature range from -20°C to 70°C
£1.38
