Toggle Switches

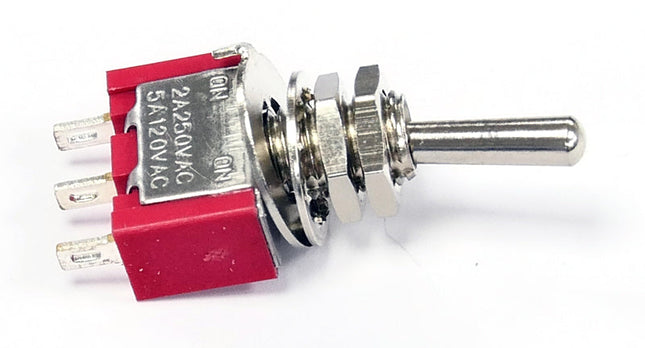

With rising costs, we needed another toggle switch at a lower cost to our Salecom range of toggle switches. Most switches we evaluated did not have the same positive action but this one proved the exception. A nice quality SPDT switch at a great price.  Rated at 5A / 120Vac and 2A at 250Vac. Thread M6 x 0.75 (slightly smaller than the Salecom imperial size of 1/4-40) 10,000 switch operations

Read more less

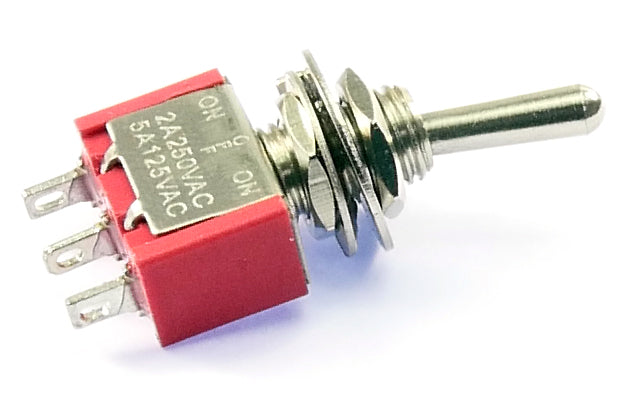

With rising costs, we needed another toggle switch at a lower cost to our Salecom range of toggle switches. Most switches we evaluated did not have the same positive action but this one proved the exception. A nice quality SPDT centre off switch at a great price.  Rated at 5A / 120Vac and 2A at 250Vac. Thread M6 x 0.75 (slightly smaller than the Salecom imperial size of 1/4-40) 10,000 switch operations

Read more less

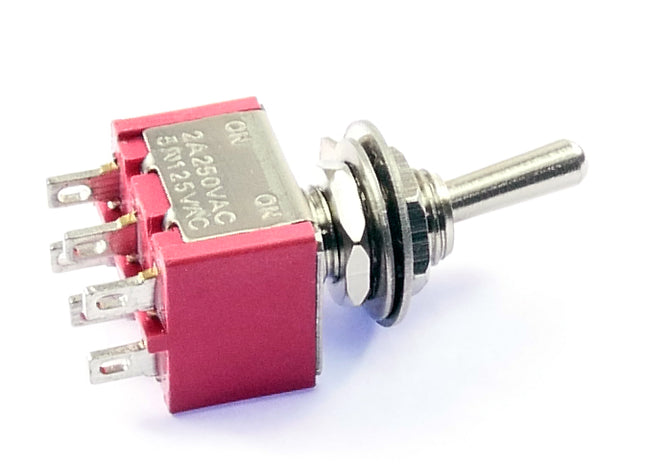

With rising costs, we needed another toggle switch at a lower cost to our Salecom range of toggle switches. Most switches we evaluated did not have the same positive action but this one proved the exception. A nice quality DPDT switch at a great price.  Rated at 5A / 120Vac and 2A at 250Vac. Thread M6 x 0.75 (slightly smaller than the Salecom imperial size of 1/4-40) 10,000 switch operations

Read more less

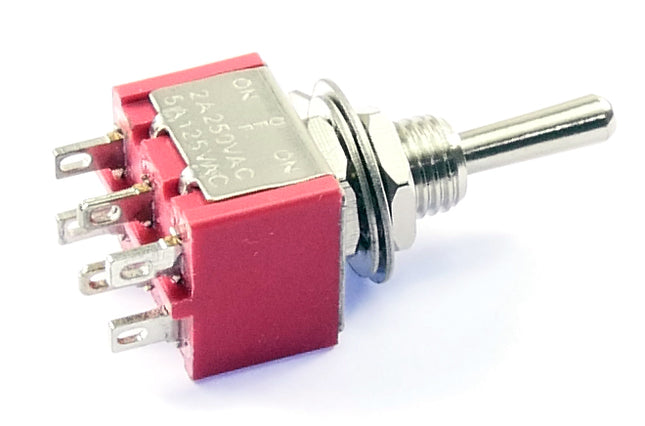

With rising costs, we needed another toggle switch at a lower cost to our Salecom range of toggle switches. Most switches we evaluated did not have the same positive action but this one proved the exception. A nice quality DPDT centre off switch at a great price.  Rated at 5A / 120Vac and 2A at 250Vac. Thread M6 x 0.75 (slightly smaller than the Salecom imperial size of 1/4-40) 10,000 switch operations

Read more less

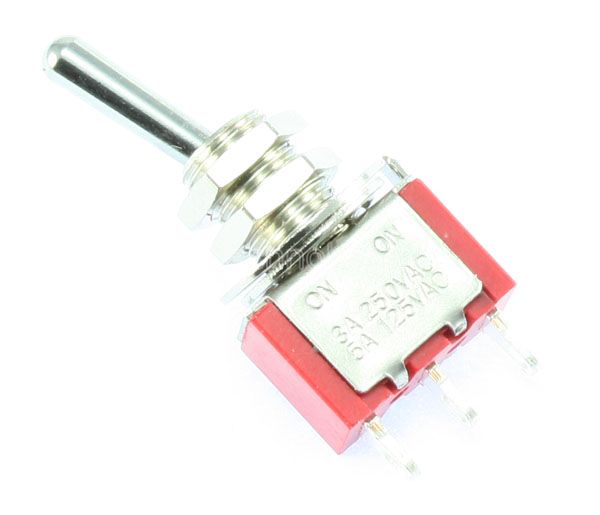

Available while stock last, replaced by 5100-002.  This switch has a single pole change over contact action) Solder lug terminations Silver plated copper alloy contacts Stainless steel housing 5A 125Vac / 28Vdc 50,000 make and break operations at full load Contact resistance 10mOhms maximum Insulation resistance 1GOhms Dielectric strength 1,500Vrms Operating temperature -30 to +85 Deg C

Read more less

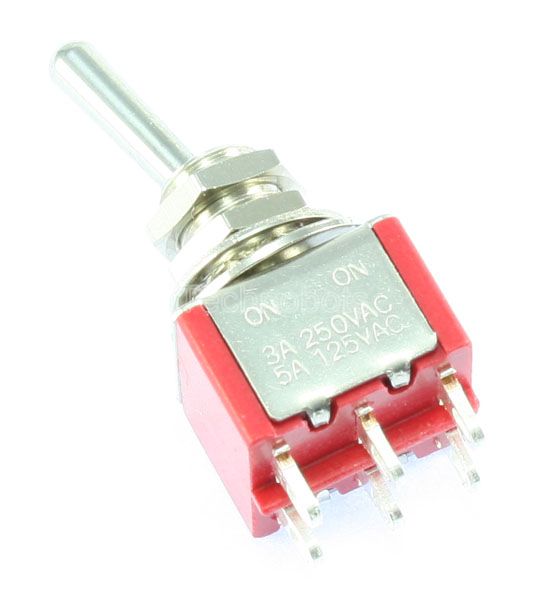

Available while stock last, replaced by 5100-003.  A double pole change over contact action. Solder lug terminations Silver plated copper alloy contacts Stainless steel housing 5A 125Vac / 28Vdc 50,000 make and break operations at full load Contact resistance 10mOhms maximum Insulation resistance 1GOhms Dielectric strength 1,500Vrms Operating temperature -30 to +85 Deg C

Read more less

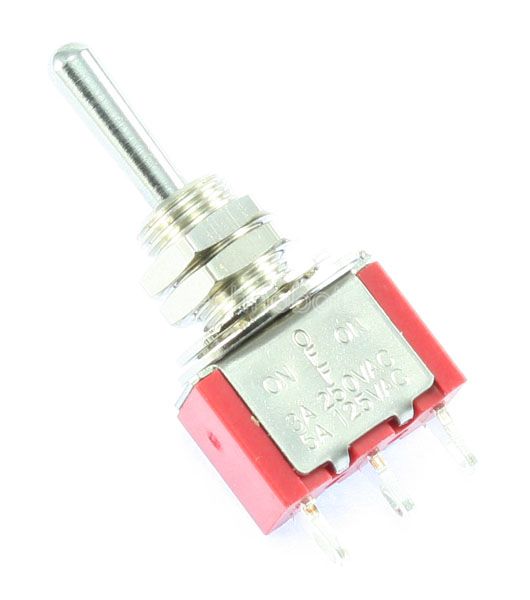

Available while stock last, replaced by 5100-004.  * Solder lug terminations* Silver plated copper alloy contacts* Stainless steel housing* 5A 125Vac / 28Vdc*50,000 make and break operations at full load*Contact resistance 10mOhms maximum*Insulation resistance 1GOhmsDielectric strength 1,500VrmsOperating temperature -30 to +85 Deg C

Read more less

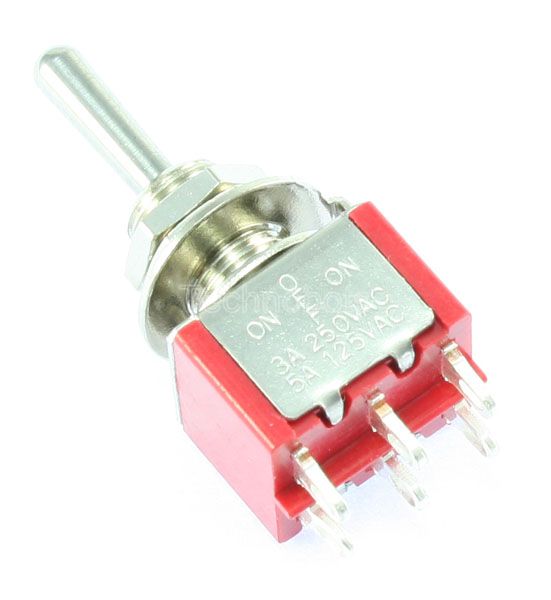

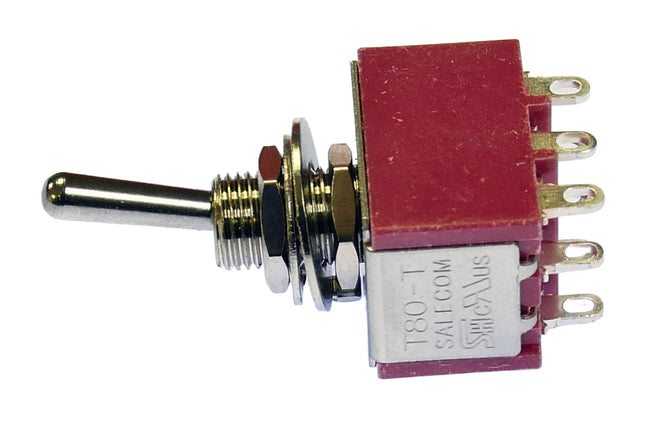

A three pole double throw change over contact action. * Solder lug terminations* Silver plated copper alloy contacts* Stainless steel housing* 5A 125Vac / 28Vdc*50,000 make and break operations at full load*Contact resistance 10mOhms maximum*Insulation resistance 1GOhms*Dielectric strength 1,500Vrms*Operating temperature -30 to +85 Deg C

Read more less

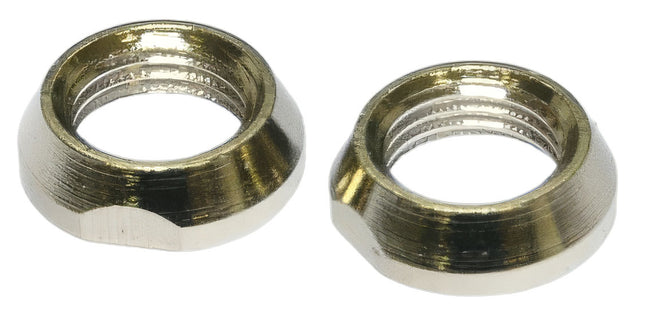

Our first generation M²Synth modules use these dress nuts in preference to hex nuts as it gives a nicer finish to the module. These nuts are only suitable for toggle switches manufactured by Salecom, not for our metric thread switches branded with Soundtronics. Thread size is 1/4-40 (American).

Read more less
