Op-amps

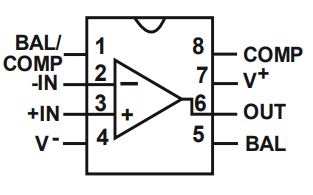

The AS301A is a general purpose operational amplifier. This amplifier offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, and freedom from oscillations and compensation with a single 30 pF capacitor. It has advantages over internally compensated amplifiers in that the frequency compensation can be tailored to the particular application.For example, in low frequency circuits it can be overcompensated for increased stability margin. Or the compensation can be optimized to give more than a factor of ten improvements in high frequency performance for most applications.In addition, the device provides better accuracy and lower noise in high impedance circuitry. The low input currents also make it particularly well suited for long interval integrators or timers, sample and hold circuits and low frequency waveform generators. Further, replacing circuits where matched transistor pairs buffer the inputs of conventional IC op amps, it can give lower offset voltage and a drift.The AS301A is guaranteed over a temperature range of 0OC to +70OC and maintains performance at -45C and +85C.FeaturesWide input voltage differential rangeCompensation network design flexibilitySupply voltages from ±5V to 18VOffset voltage 2 mV (typ)Input current 250 nA (typ)Offset current 30 nA (typ)Guaranteed drift characteristicsOffsets guaranteed over entire common mode and supply voltage ranges - Slew rate of 10 V/us as a summing amplifier

Read more less

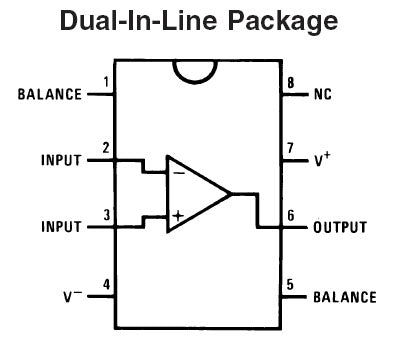

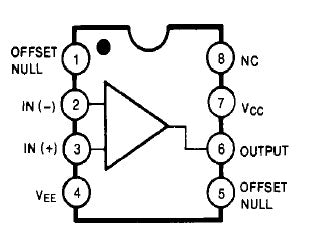

The LM741 series are general purpose operational amplifiers. It is intended for a wide range of analogue applications. The high gain and wide range of operating voltage provide superior performance in integrator, summing amplifier, and general feedback applications. • Excellent temperature stability• Internal frequency compensation• High Input voltage range• Null of offset

Read more less

The LF442 dual low power operational amplifiers provide many of the same AC characteristics as the industry standard LM1458 while greatly improving the DC characteristics of the LM1458. The amplifiers have the same bandwidth, slew rate, and gain (10 kΩ load) as the LM1458 and only draw one tenth the supply current of the LM1458. In addition the well matched high voltage JFET input devices of the LF442 reduce the input bias and offset currents by a factor of 10,000 over the LM1458. A combination of careful layout design and internal trimming guarantees very low input offset voltage and voltage drift. The LF442 also has a very low equivalent input noise voltage for a low power amplifier. The LF442 is pin compatible with the LM1458 allowing an immediate 10 times reduction in power drain in many applications. The LF442 should be used where low power dissipation and good electrical characteristics are the major considerations. Features 1/10 supply current of a LM1458: 400 μA (max) Low input bias current: 50 pA (max) Low input offset voltage: 1 mV (max) Low input offset voltage drift: 10 μV/°C (max) High gain bandwidth: 1 MHz High slew rate: 1 V/μs Low noise voltage for low power: Low input noise current: High input impedance: 1012Ω High gain VO = ±10V, RL = 10k: 50k (min)

Read more less

These devices are low cost, high speed, JFET input operational amplifiers with very low input offset voltage and guaranteed input offset voltage drift. They require low supply current yet maintain a large gain bandwidth product and fast slew rate. In addition, well matched high voltage JFET input devices provide very low input bias and offset currents. The LF411 is pin compatible with the standard LM741 allowing designers to immediately upgrade the overall performance of existing designs. These amplifiers may be used in applications such as high speed integrators, fast D/A converters, sample and hold circuits and many other circuits requiring low input offset voltage and drift, low input bias current, high input impedance, high slew rate and wide bandwidth. Features Internally trimmed offset voltage: 0.5 mV(max) Input offset voltage drift: 10 μV/°C(max) Low input bias current: 50 pA Low input noise current: 0.01 pA/√Hz Wide gain bandwidth: 3 MHz(min) High slew rate: 10V/μs(min) Low supply current: 1.8 mA High input impedance: 1012Ω Low total harmonic distortion: ≤0.02% Low 1/f noise corner: 50 Hz Fast settling time to 0.01%: 2 μs

Read more less

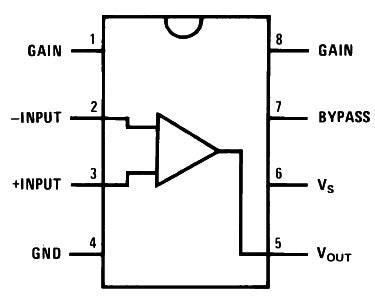

The LM386N-4 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply, making the LM386 ideal for battery operation. 8-Pin DIP package. Features Battery operation Minimum external parts Wide supply voltage range: 5V–18V Low quiescent current drain: 4mA Voltage gains from 20 to 200 Ground referenced input Self-centring output quiescent voltage Low distortion: 0.2% (AV = 20, VS = 6V, RL = 8W, PO = 125mW, f = 1kHz) NOPB version Applications AM-FM radio amplifiers Portable tape player amplifiers Intercoms TV sound systems Line drivers Ultrasonic drivers Small servo drivers Power converters

Read more less

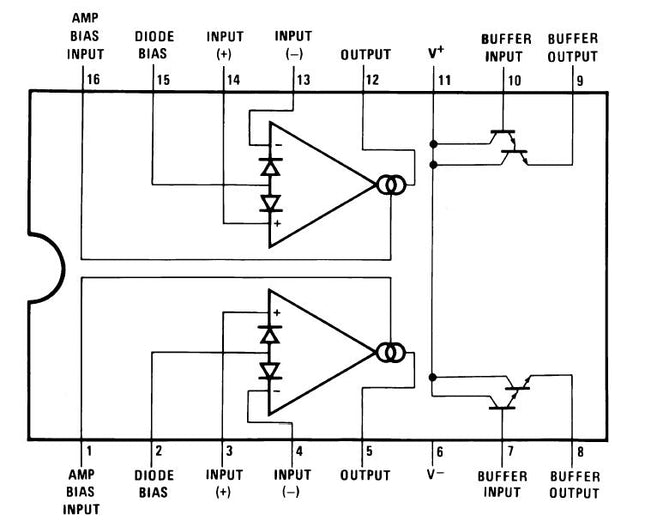

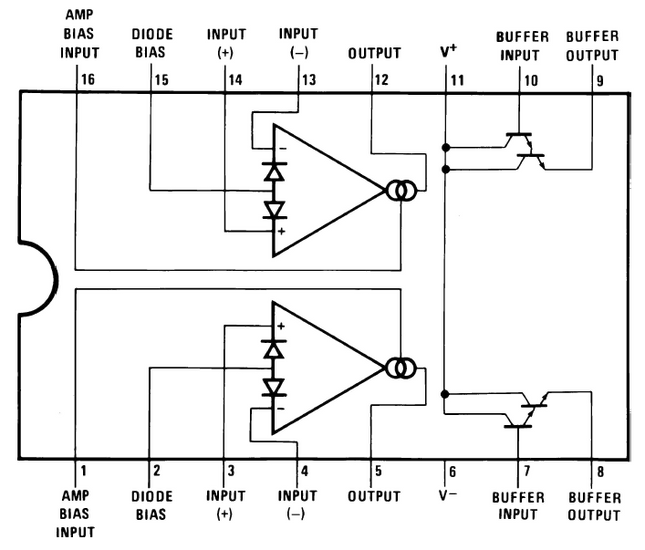

The LM13700 series consists of two current controlled transconductance amplifiers, each with differential inputs and a push-pull output. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10 dB signal-to-noise improvement referenced to 0.5 percent THD. High impedance buffers are provided which are especially designed to complement the dynamic range of the amplifiers. The output buffers of the LM13700 differ from those of the LM13600 in that their input bias currents (and hence their output DC levels) are independent of IABC. This may result in performance superior to that of the LM13600 in audio applications.  Features: gm Adjustable over 6 Decades Excellent gm Linearity Excellent Matching between Amplifiers Linearizing Diodes High Impedance Buffers High Output Signal-to-Noise Ratio Applications: Current-Controlled Amplifiers Current-Controlled Impedances Current-Controlled Filters Current-Controlled Oscillators Multiplexers Timers Sample-and-Hold circuits Analogue music synthesisers Downloads National Semiconductor Datasheet

Read more less

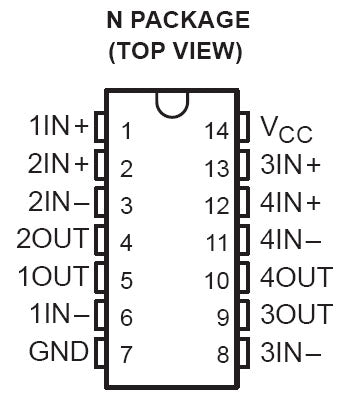

Consists of four independent, highgain frequency-compensated Norton operational amplifiers that were designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies is also possible. The low supply current drain is essentially independent of the magnitude of the supply voltage. These devices provide wide bandwidth and large output voltage swing.

Read more less

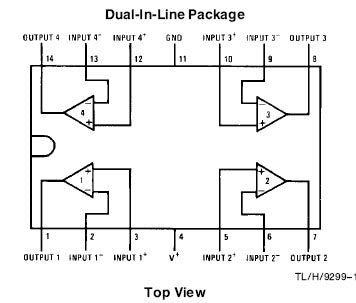

The LM324 features 4 high gain internally frequency compensated op amps designed to operate from a single supply rail although split rails is still possible. With a supply current of 700uA (See LP724 below for low power version).

Read more less

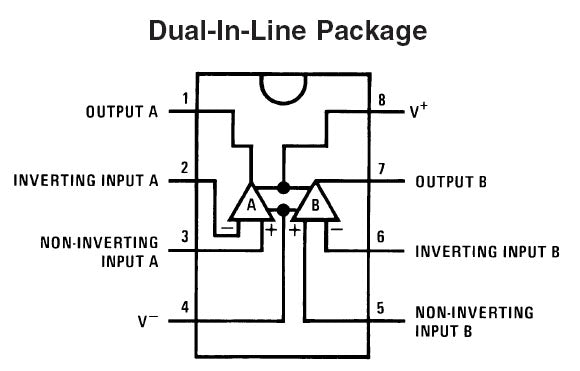

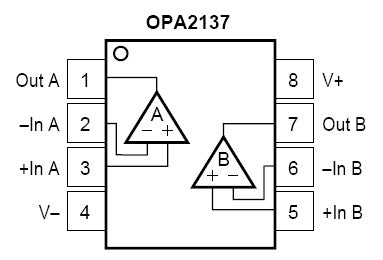

Dual FET-input operational amplifier designed for low cost applications. It provides low input bias current (5pA), low quiescent currrent (220mA/channel), and high open-loop gain (94dB).Either single (+4.5V to +36V) or dual (±2.25 to ±18V) supplies can be used. The input common-mode voltage range includes the positive supply—suitable for many single-supply applications.Easy to use and free from phase inversion and overload problems found in some FET-input amplifiers. High performance, including linearity, is maintained as the amplifiers swing to their specified limits. In addition, the combination of high slew rate (3.5V/ms) and wide bandwidth (1MHz) provide fast settling time assuring good dynamic response. The CPA2137 features completely independent circuitry for lowest crosstalk and freedomfrom interaction.

Read more less

The TL082 is a high speed J-FET input dual operational amplifier. It features well matched high voltage J-FET and bipolar transistors in a monolithic integrated circuit. The op-amp features high slew rates of 16V/uS, low input bias and offset currents and low offset voltage temperature coefficient.

Read more less

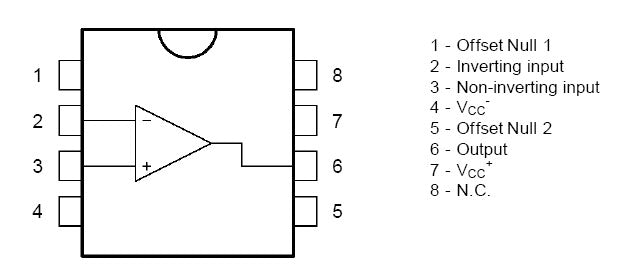

The TL081 is a high speed J-FET input single operational amplifier. It features well matched high voltage J-FET and bipolar transistors in a monolithic integrated circuit. The op-amp features high slew rates of 16V/uS, low input bias and offset currents and low offset voltage temperature coefficient.

Read more less

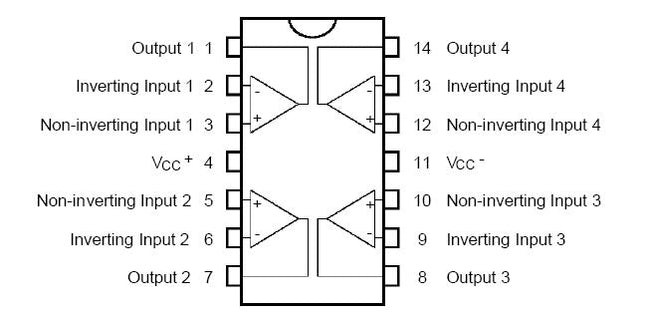

The TL074 is a high speed J-FET input quad operational amplifier. It features well matched high voltage J-FET and bipolar transistors in a monolithic integrated circuit. The op-amp features high slew rates of 13V/uS, low input bias and offset currents and low offset voltage temperature coefficient.

Read more less

The TL072BCP is a high speed J-FET input dual operational amplifier featuring well matched high voltage J-FET and bipolar transistors in a monolithic integrated circuit. The op-amp features high slew rates of 16V/uS, lower input bias that the standard TL072CP, low offset currents and low offset voltage temperature coefficient.

Read more less

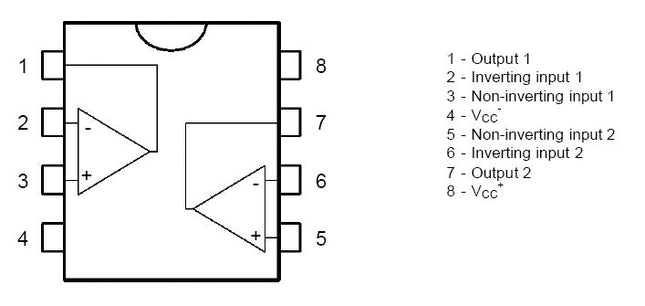

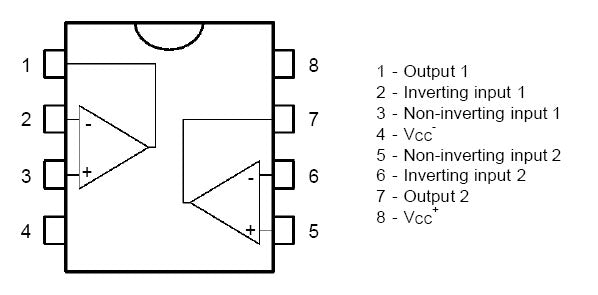

The TL072 is a high speed J-FET input dual operational amplifier. It features well matched high voltage J-FET and bipolar transistors in a monolithic integrated circuit. The op-amp features high slew rates of 16V/uS, low input bias and offset currents and low offset voltage temperature coefficient.

Read more less

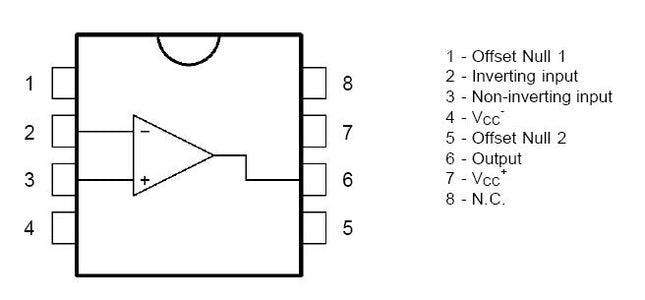

The TL071 is a high speed J-FET input single operational amplifier. It features well matched high voltage J-FET and bipolar transistors in a monolithic integrated circuit. The op-amp features high slew rates of 16V/uS, low input bias and offset currents and low offset voltage temperature coefficient.

Read more less

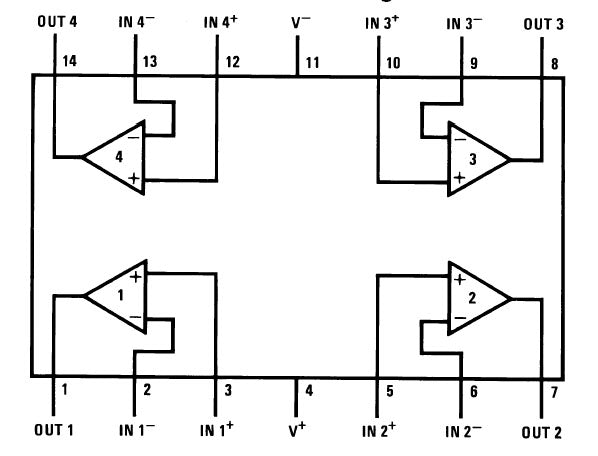

The LF444 quad low power operational amplifier provides many of the same AC characteristics as the industry standard LM148 while greatly improving the DC characteristics of the LM148. The amplifier has the same bandwidth, slew rate, and gain (10 kΩ load) as the LM148 and only draws one fourth the supply current of the LM148. In addition the well matched high voltage JFET input devices of the LF444 reduce the input bias and offset currents by a factor of 10,000 over the LM148. The LF444 also has a very low equivalent input noise voltage for a low power amplifier. The LF444 is pin compatible with the LM148 allowing an immediate 4 times reduction in power drain in many applications. The LF444 should be used wherever low power dissipation and good electrical characteristics are the major considerations.   Features ¼ Supply Current of a LM148: 200 μA/Amplifier (max) Low Input Bias Current: 50 pA (max) High Gain Bandwidth: 1 MHz High Slew Rate: 1 V/μs Low Noise Voltage for Low Power 35 nV/√Hz Low Input Noise Current 0.01 pA/√Hz High Input Impedance: 1012Ω High Gain: 50k (min)
