Modular Synth Power Supplies

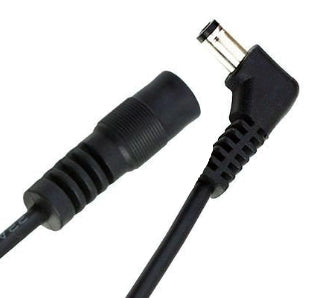

A 100cm long dc extension lead for connecting a System 345 splitter cable between the power brick and the case / skiff. We chose this lead after trying many different manufacturers for their volt drop and these were by far the best due to their larger cable diameter.

Read more less

A 50cm long dc extension lead for connecting a System 345 splitter cable between the power brick and the case / skiff. We chose this lead after trying many different manufacturers for their volt drop and these were by far the best due to their larger cable diameter.

Read more less

A short 1 to 4 splitter cable that allows one power supply brick to feed up to 4 System 345 cases or skiffs. Use with our dc power extension leads (50cm / 100cm) to suit your rack of cases. We chose this lead and trying many different manufacturers for volt drop and these were by far the best due to their larger cable diameter.

Read more less

Coming soon Our top of the range Eurorack power supply board. This version adds to the already high specification of the ER14BR by including a 5V rail and individual voltage regulators on the +12V and -12V rails on each of the 14 off 16-pin box headers all derived from a single 15Vdc input. Designed for use with our System 345 Eurorack cases but can also be used standalone. Distributes +/-12V & 5V to each of the 14 x 16-pin sockets +12V rail rated at over 1A, 500mA per header. 12V rail split over sockets 1-7 and 8-14, each rated at over 500mA with up to 100mA available at each header. Less than 10mV noise peak to peak at typical load currents (see full specification below) Individual voltage regulation on the +12V and -12V rails at every 16-pin header. This provides current limiting to each module preventing a faulty module from taking down the overall power supply, thus allowing the remaining modules to continue operating normally.  It also reduces the risk of one module from interfering with another from pulses on the +12V line. Reduces the detuning of VCOs due to fluctuations in the overall power supply from line and load voltage variations. Noise & ripple filtering on +12V and -12V pins at every 16-pin box header Fitted power switch Fuse protection Expandable for 104HP cases and 6U cases. Note: expansion connectors not fitted as standard Low voltage drop, lower than IDC ribbon cable adopted by some manufacturers

Read more less

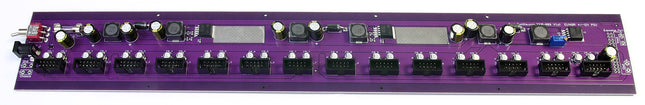

Our standard Eurorack power supply board that accepts a 15Vdc input and will generate the +/-12V supplies to each of the 14 x 10-pin box headers. Designed for use with our System 345 Eurorack cases but can also be used standalone. Please note the EU14BR does not include a 5V rail, for that you require our EU14FR version. Distributes +/-12V to 14 x 10-pin sockets +12V rail rated at over 1A, -12V rail split over sockets 1-7 and 8-14, each rated at over 500mA. Less than 10mV noise peak to peak at typical load currents (see full specification below) Noise & ripple filtering on +12V and -12V pins at every 10-pin box header Fitted power switch Fuse protection Expandable for 104HP cases and 6U cases. Note: expansion connectors not fitted as standard Low voltage drop, lower than IDC ribbon cable adopted by some manufacturers

Read more less

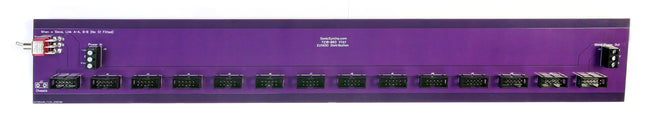

If you use a central +/-12V power supply feeding multiple cases / skiffs, then the EU14DO power distribution board could be just what you need to go with our System 345 Eurorack cases. Distributes +/-12V to 14 x 10-pin sockets Fitted power switch Expandable Low voltage drops, lower than IDC ribbon cable adopted by some manufacturers Size: 445 x 65.5mm

Read more less

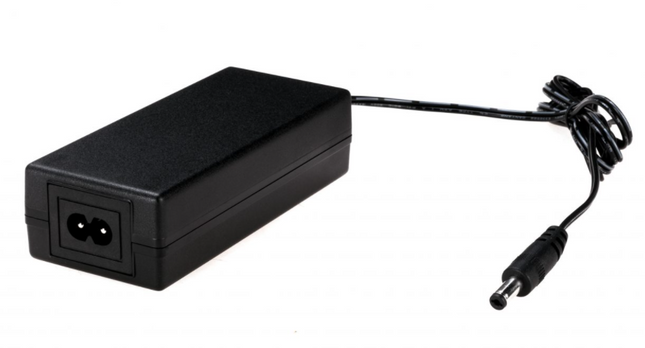

System 345 15V Power Supply. We tested many power supplies with the original M²Synth and this model gave by far the best results hence making it the ideal pairing with the System 345 modular synth cases. It has a 15Vdc output at 4A (60W max) which can provides sufficient power for up to 2-4 cases fitted with a typical array of modules. The supply has one 2.1mm power plug so to use it for multiple cases, use our splitter cable with extension cables as needed. IMPORTANT: Suitable only for our power supply boards that provide +/-12V (and +5V). For +15V/-15V systems, the 18V version is required. The optional 'fig8' mains lead is available to suit many countries standard and can be found here. Complies with LVD 62368-1 standards Single power: 60W Level VI Efficiency Regulations Compliant Universal Input 90~264V AC 47~63Hz 2.1 x 5.5mm connector Approved to cULus, TUV-GS, RCM (C-Tick), PSE, CCC, CB, FCC, CE, RoHS & REACH Input voltage:100-240VAC Efficiency: VI

Read more less
