Eurorack Cases

Eurorack format skiffs from the Sonic Synths System 345 range. Skiffs are available as either bare, unpowered or powered to suit your particular needs. Powered versions require the optional 'brick' external power supply. We do not bundle these in as standard because one power brick could power 2, 3 even 4 cases depending on the total load. Not all unpowered and powered versions include a 5V rail so please check product details before ordering.

System 345 Eurorack Features

Power supply / power distribution concealed within the extrusion sides allowing for a full depth of 60mm over the entire module area
Various power distribution and power supply options to suit the user's needs and budget
Expandable - Using our couplers, skiffs can be linked together to form racks as high as 6 skiffs
All powder coated steel and anodised aluminium construction to form a robust construction. Looks great in your home studio or on stage
Integrates with other System 345 cases to allow mixing of differing modular formats within the same rack
Use M3 tapped rails, M3 hex or square nuts for module mounting

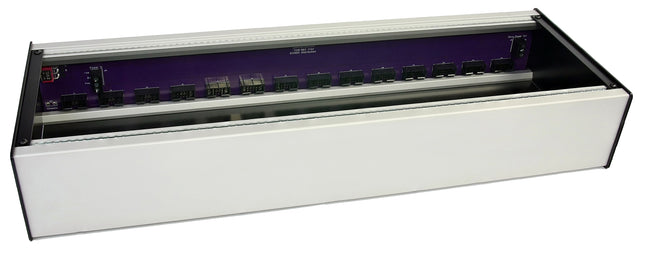

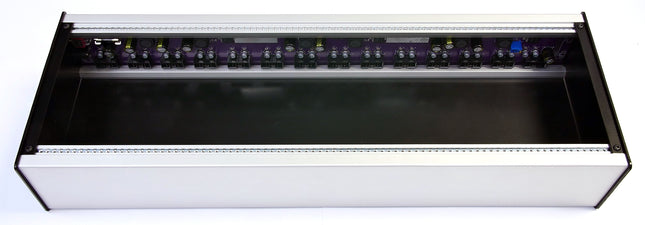

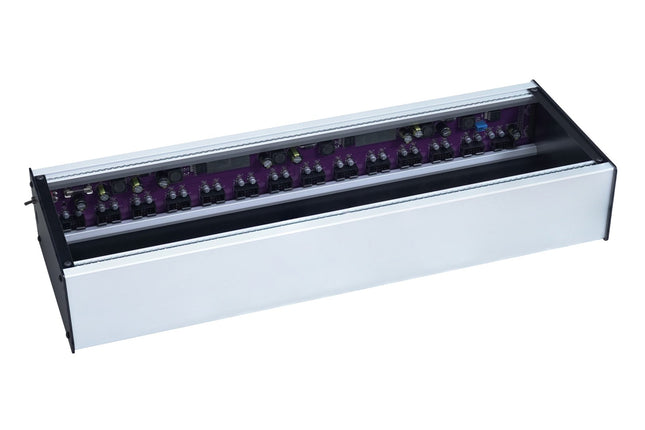

Sonic Synths Eurorack Powered Skiff Case 84HP

This powered 84HP case includes the power supply board EU14BR. Plug in the optional 15Vdc power brick and you are ready to go. The +/-12Vdc are generated and distributed by the EU14BR to the 14 x 10-pin module power headers. Included: Front and back sides, 1 x blank cheek, 1 x powered cheek, 2 x infill panels, back panel, tapped strips and the EU14BR power supply. Optional: 15V, 60W power brick. Depending on the modules you populate the case with, one power brick can power up multiple cases, up to 4 maximum. This is achieved using our external dc power leads. This approach was first utilised to great success on our flagship M²Synth using a similar now retired case design that precedes the System 345.

Read more less

£150.00 - £166.00

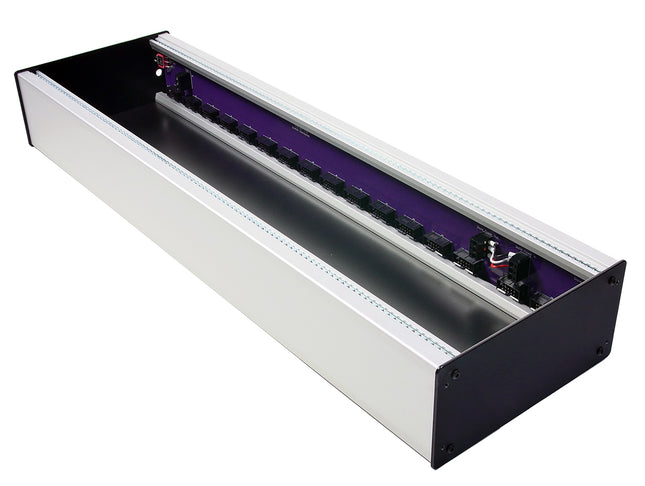

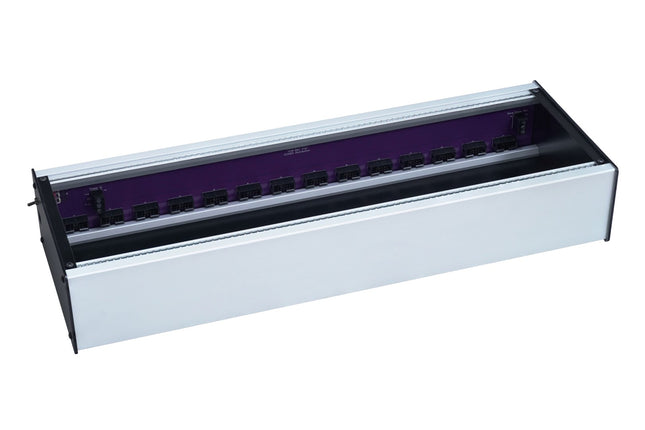

Sonic Synths Eurorack Unpowered Skiff Case 84HP

This unpowered 84HP case includes the power distribution board EU14DO. This solution is for users that have an external bipolar power supply +/-12Vdc that can be hard wired to the EU14DO which in turn provides the 14 way power distribution to the 10-pin module power headers. Included: Front and back sides, 1 x blank cheek, 1 x unpowered cheek, 2 x infill panels, back panel, tapped strips and the EU14DO distribution board.

Read more less

£107.50

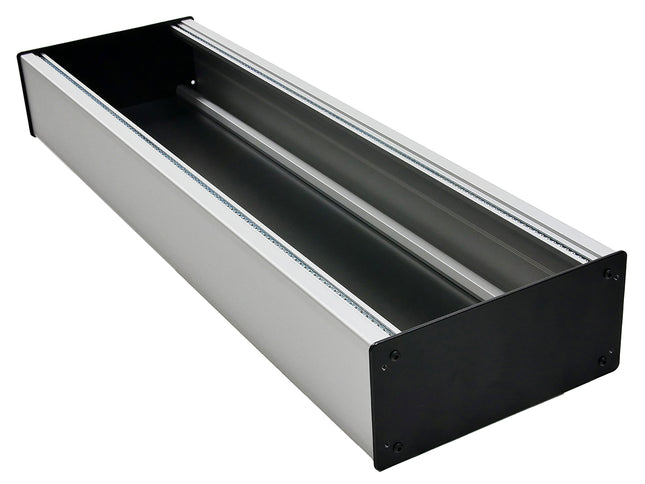

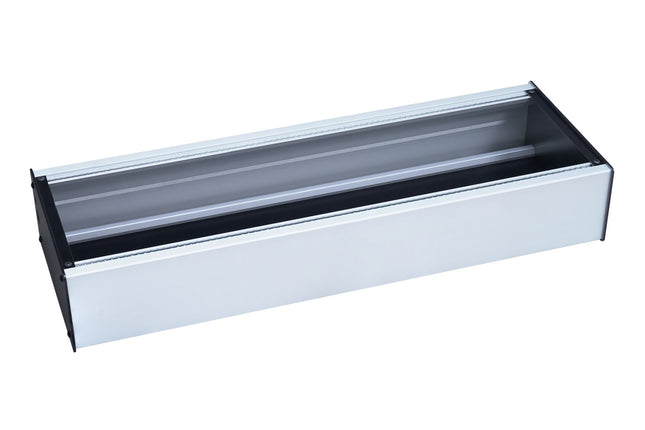

Sonic Synths Eurorack Bare Skiff Case 84HP

This bare 84HP case includes no power distribution or cable entries leaving it as a 'blank canvas' to customise to suit your own needs. Included: Front and back sides, 2 x blank cheeks, 2 x infill panels and back panel. Tapped strips are optional.

Read more less

£74.17 - £84.96

Compare System 345 Eurorack Skiffs

Skiffs are available in 4 product types:

Bare
Unpowered
Powered
Powered Plus*

Skiffs are further available in differing sizes (HP)

84
104*
168*
208*

Skiffs can be joined together to make a larger system / rack.

*Not yet available to order online

Bare

Unpowered

Powered - Most Popular

Powered Plus*

Size (HP)

Height (U)

Internal Depth (mm)

Integral Power Distribution

yes

Integral Power Supply

yes

Input Voltage

15Vdc

Input 15V Power Supply Included?

Optional

Output Voltages

+/-12V

+/-12V, 5V

Output Current +12V (Typ / Max)

1000/2000mA

TBA

Output Current -12V (Typ/Max)

1000/2000mA

TBA

Output Current +5V

TBA

Typical Noise

<10mV P-P

TBA

Current Limiting per Module

Yes

Voltage Regulation per Module

Yes
