Transformers
-

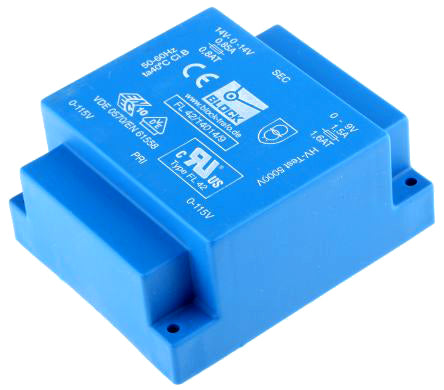

Soundtronics Block Transformer 42VA 0-12V 0-12V
A 42VA transformer with two 12V output windings for direct PCB mounting. Ideal transformer for synth builders due to its encapsulation and safety features. It can be used for both 120 or 240Vac input. Specifications The FL series low profile Isolation Transformer with XtraDenseFill resin encapsulation features permanent corrosion protection, high insulation value and maximum electrical reliability. It can be used as a mains transformer for adjustment of the voltage and simple electrical isolation, as an isolating transformer for the safe electrical isolation of the input and output sides. The transformer may be used to set up protective separation as a protective measure in accordance with VDE 0100. It is suitable for creating SELV and PELV circuits because of the limit on the output voltage. Class-E insulation 81% Efficiency IP00 Protection degree Minimum size at high output Low height Double input voltage for series or parallel connection Double output voltage for series or parallel connection Coil shell in 2-chamber technology Self-extinguishing potting material
£31.37
-

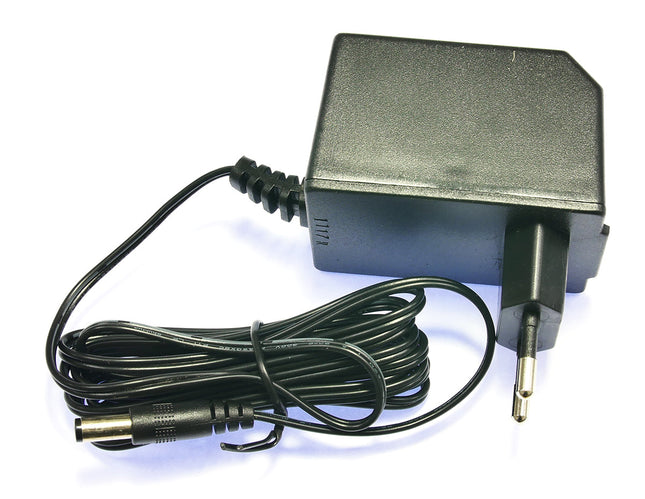

Ideal Power 12Vac 500mA EU Power Supply Wall Wart
A 12Vac 500mA (note AC not DC). Fitted with a 2.1mm power plug lead (1.8m long). EU Plug only, for UK version see here. Plug in Linear AC/AC Adaptor 6~7VA output Power EN61558-1, EN61558-2-6, EN60065 Approved Protection Type: One-Shot Thermal Fuse V-0 Rated Enclosure Operating Temperature 0~40°C RoHS & CE Directive Compliant Other output Voltages & Currents available Light Weight: 285g only ERP II Regulations Compliant Approved to UK & European Standards Voltage/Current 12Vac, 500mA Power max. 6W Output voltage 12Vac Output current max. 500mA The unit to be powered must not draw more current than the maximum continuous current of the power supply, in order to prevent overload. The continuous current draw, should be no more than 80% of the output current max (400mA).
£11.27
-

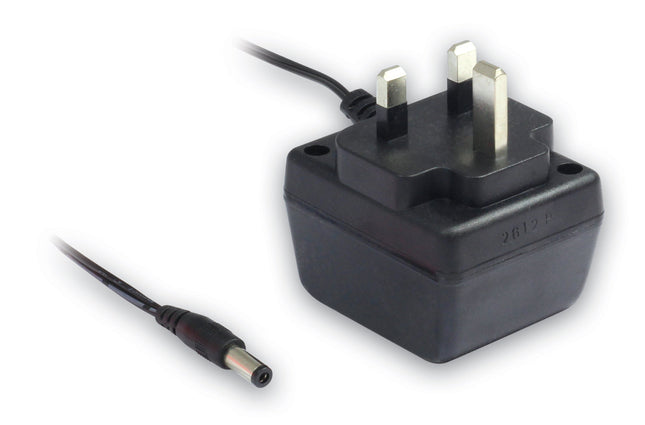

Ideal Power 12Vac 600mA UK Power Supply Wall Wart
12Vac 600mA (note AC not DC). Fitted with a 2.1mm power plug lead (1.8m long). UK Plug only, for EU (lower power) version see here. 7.2VA AC/AC External Adapter UK Plugtop Power Supply (PSU) Series are certifiedto UKCA, CE, TUV, RoHS, REACH & EN 62368-1/IEC 62368-1/IEC 61558-1/IEC 61558-2-10 Standards andcomply with (EU) 2019/1782, Level VI Efficiency Regulations. Plug in Linear AC/AC Adaptor 7.2VA output Power EN61558-1, EN61558-2-6, EN60065 Approved Protection Type: One-Shot Thermal Fuse V-0 Rated Enclosure Operating Temperature -10~40°C RoHS & CE Directive Compliant Light Weight: 285g only ERP II Regulations Compliant Approved to UK & European Standards Voltage/Current 12Vac, 600mA Power max. 7.2W Output voltage 12Vac Output current max. 600mA The unit to be powered must not draw more current than the maximum continuous current of the power supply, in order to prevent overload. The continuous current draw, should be no more than 80% of the output current max (400mA).
£13.60
