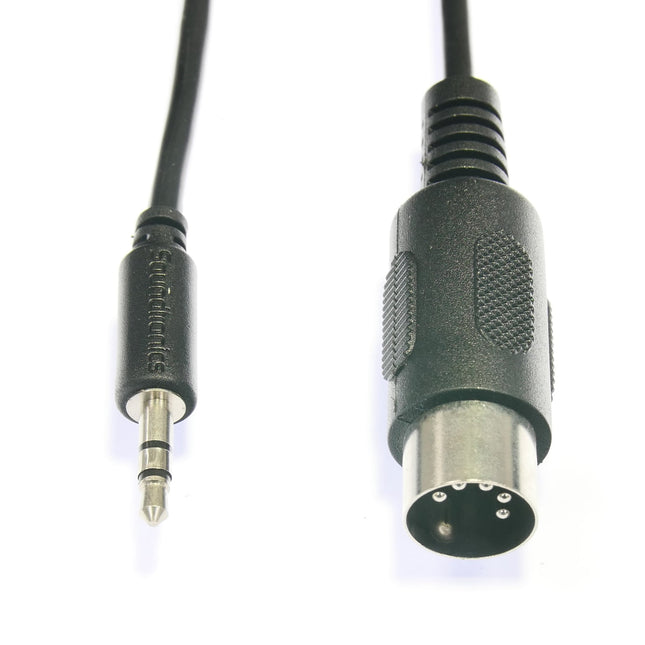

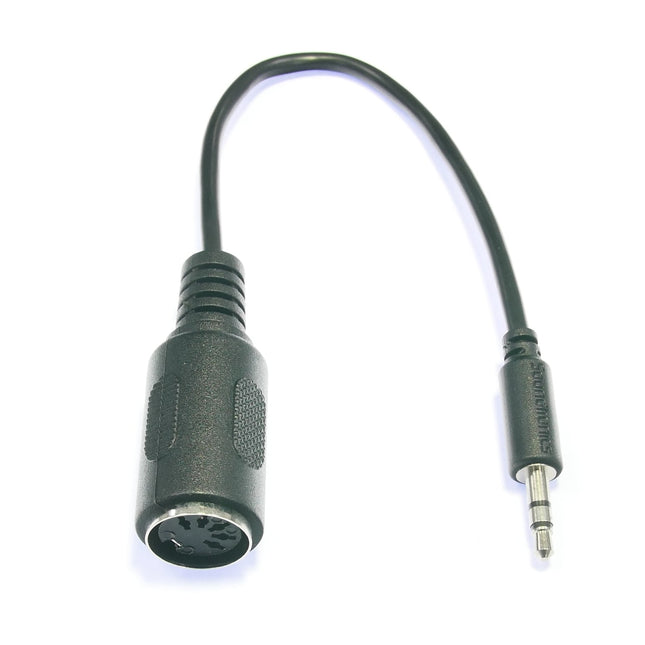

MIDI over TRS standard was introduced by the MIDI Manufacturers Association in 2017. Soundtronics has adopted this standard for the M²Synth MIDI2CV converters avoiding the need for the large DIN connectors.This Soundtronics brand 15cm Lead is ideal for converting an existing MIDI DIN plug to a 3.5mm TRS.The wiring for this lead follows the MIDI standard and often referred to as Type A. Note that a few manufacturers like Arturia use a different wiring convention (Type B) and is thus not suitable.

Read more less

MIDI over TRS standard was introduced by the MIDI Manufacturers Association in 2017. Soundtronics has adopted this standard for the M²Synth MIDI2CV converters avoiding the need for the large DIN connectors.This Soundtronics brand 150cm Lead is ideal for linking the MIDI out of a MIDI keyboard to the MIDI in of a M²Synth MIDI2CV module. The wiring for this lead follows the MIDI standard and often referred to as Type A. If using this lead for other products, note that a few manufacturers like Arturia use a different wiring convention (Type B) and is thus not suitable.

Read more less

MIDI over TRS standard was introduced by the MIDI Manufacturers Association in 2017. Soundtronics has adopted this standard for the M²Synth MIDI2CV converters avoiding the need for the large DIN connectors.This Soundtronics brand 100cm Lead is ideal for linking the MIDI thru of one MIDI2CV module to the MIDI in of another MIDI2CV module. Setting the MIDI2CV modules to different MIDI channels allows one MIDI source such as a PC based sequencer to control multiple CV / gates.

Read more less

MIDI over TRS standard was introduced by the MIDI Manufacturers Association in 2017. Soundtronics has adopted this standard for the M²Synth MIDI2CV converters avoiding the need for the large DIN connectors.This Soundtronics brand 50cm Lead is ideal for linking the MIDI thru of one MIDI2CV module to the MIDI in of another MIDI2CV module. Setting the MIDI2CV modules to different MIDI channels allows one MIDI source such as a PC based sequencer to control multiple CV / gates.

Read more less

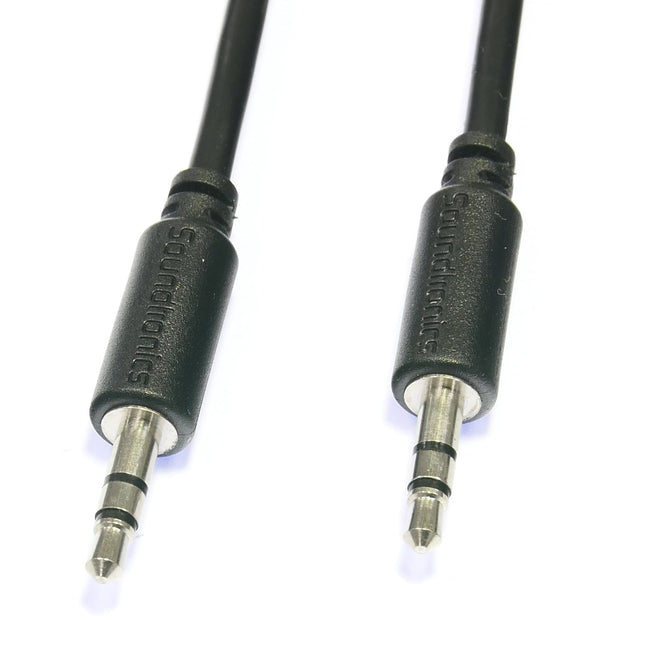

MIDI over TRS standard was introduced by the MIDI Manufacturers Association in 2017. Soundtronics has adopted this standard for the M²Synth MIDI2CV converters avoiding the need for the large DIN connectors.This Soundtronics brand 10cm Lead is ideal for linking the MIDI thru of one MIDI2CV module to the MIDI in of another adjacent MIDI2CV module. Setting the MIDI2CV modules to different MIDI channels allows one MIDI source such as a PC based sequencer to control multiple CV / gates.

Read more less

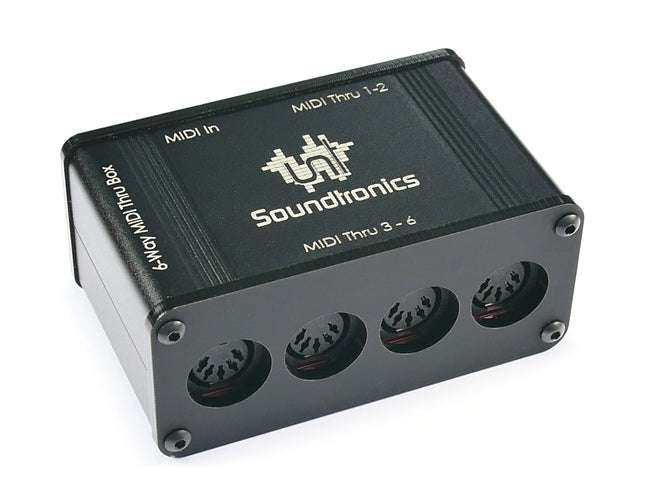

The Soundtronics MIDI Thru Box or splitter as they are sometimes called, address the problem of driving more than 1 MIDI device from the same MIDI source. It also resolves the problem of signal delay (latency) and signal distortion / losses with chains of MIDI thru to MIDI In (especially where the MIDI thru is via software). MIDI devices such as a master keyboard, sequencer, drum machine etc, typically only have one output and possibly a MIDI thru port.  A MIDI communication signal is really a current loop so you cannot reliably parallel MIDI connections, so a MIDI out can only drive a single MIDI In. Our MIDI Thru Boxes take a MIDI In signal and generates 6 exact copies of this MIDI In signal simultaneously and actively drives these to the 6 outputs.  Some MIDI Thru Boxes do not require a power supply but these can have limitations and restrictions such as cable length, deterioration of signal quality / drive voltage losses etc. The Soundtronics Thru Box requires a 5V dc power supply (included) to power the internal active electronics and thus not depend on the compliance of the master signal and in turn clean + boost the signal to the full 5V again for reliable re-transmission to the MIDI slave devices. Chain Method  Chain method can introduce delays (signal latency) to the MIDI signal especially with chains longer than 2-3 slaves.  Also requires slave units to be powered up to reach subsequent slaves.   Thru Box Star Method  The Star approach - all MIDI slave units receive a clean boosted signal at the same time. The Soundtronics MIDI Thru Box can drive up to 6 slave units at once. Our MIDI Thru Boxes can also be cascaded where you need to drive more than 6 slave units. Additionally, the MIDI source input is opto-isolated from the 6 MIDI outputs to prevent ground loops. MIDI Connections   The MIDI Thru Box has 6 MIDI outputs, 4 of which are on the front panel. As all 6 MIDI signals are identical, it is not important which of the 6 output sockets you use.   The rear panel has the remaining two MIDI output sockets, the MIDI In input socket, the 5V micro-USB power socket and a LED that flashes when a MIDI message is received. The Thru Box is very straightforward to use, simply plug a lead in from the master MIDI signal out (or thru if needed) to the Thru Box MIDI In socket using a standard 5-pin 180° DIN plug lead. Connect the Thru Box outputs to the Midi In sockets on the MIDI slave units again using standard 5-pin 180° DIN plug leads. Connect the 5V power supply (UK version included) to the micro-USB socket on the rear panel.   That’s it, you are ready to go. The Thru Box draws very little power just 10-30mA and the adaptor is also very efficient so energy consumption is negligible.  Please note that the power supply must be 5V dc regulated, damage to the Thru Box electronics may occur if an incorrect voltage is used.   Specifications Input Channels 1 Output Channels 6 MIDI Message Indicator Yes Thru Box Input Voltage 5V dc (< 30mA) Mains Adaptor Voltage 100 to 240Vac Thru Box Power Input Socket Micro-USB Dimensions 90x40x57mm

Read more less

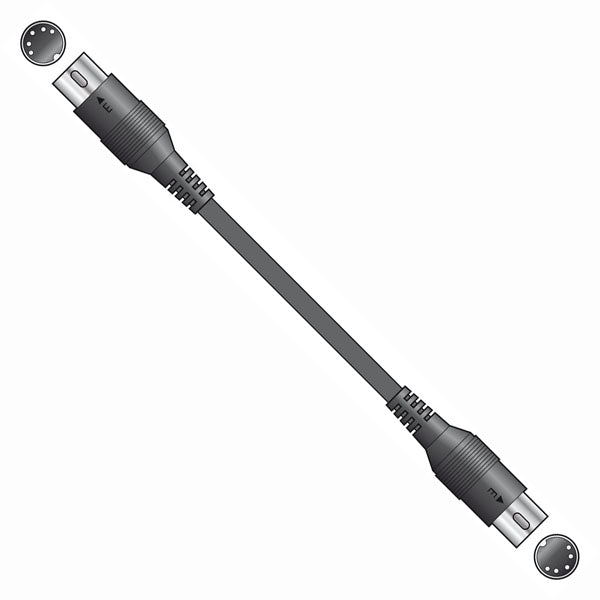

A high quality DIN MIDI cable 6m long from Chord Music for connecting music controllers and devices together. Strong and flexible cable with low loss conductors and global shielding ensure a clean data stream. Terminated at each end with a 180° 5-pin DIN plug.  Cable diameter 5.0mmØ Conductors 5 x 10 strand, 0.1mmØ pure copper   Connectors 180° 5-pin DIN plug
