Power Supply Connectors

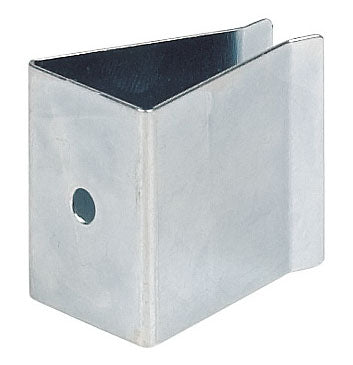

A spring metal clip for physically holding PP3 batteries. Can be mounted by a single screw fixing to PCB's or a chassis.* Single M3 fixing hole* Dimensions: 24(W) x 26(H) x 17mm(D)

Read more less

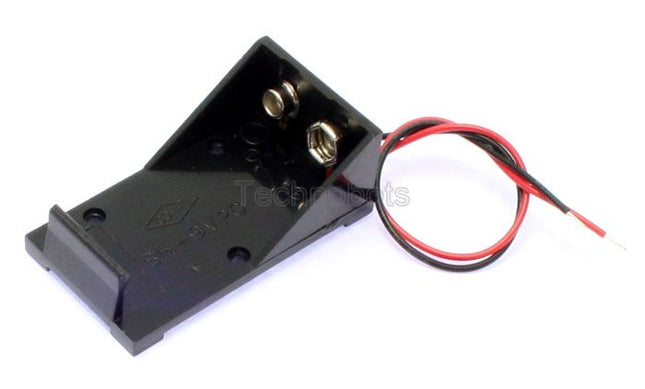

A PP3 battery holder moulded in black thermoplastic with flying leads. Can be screwed to a base for the most secure mounting.

Read more less

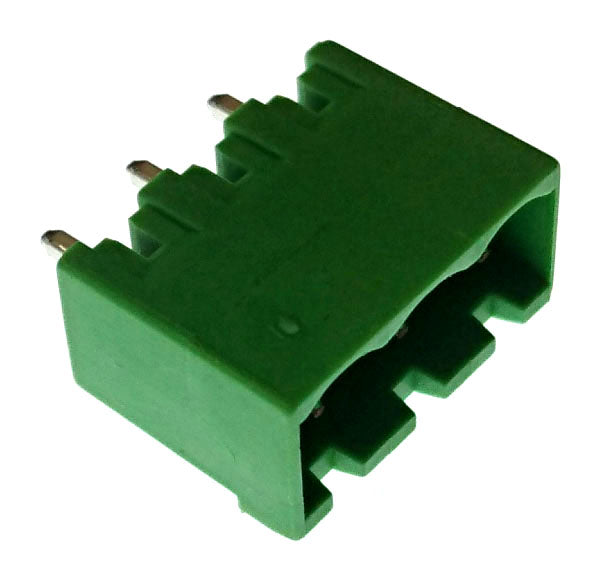

Distribution of bipolar power to synth modular racks or between your synth stand alone cases has been a challenge for us. We have standardised on this 3-pin socket which with its matching plug 7212-321 as our solution. It is rated at over 2.5A so is well rated for our 1.5A power supplies. For cable, use our 3-core 7300-611 which is also rated at 2.5A.

Read more less

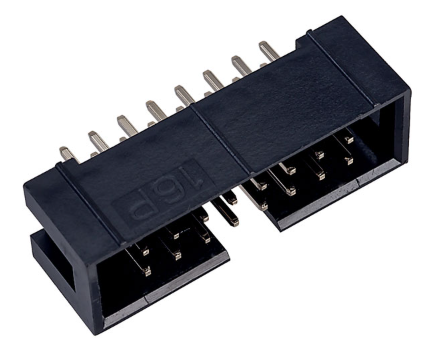

These box headers are a dual row shrouded header for use with our dual row IDC female socket connectors. The low profile, space saving design has a centre slot for the socket's polarization bump. The headers are available also available in right angle PCB mount.  Number of ways: 16 (2x8) Provides a quick and simple interconnection system Gold-plated brass contacts Designed for use with ribbon cable Available in 10, 14, 16, 20, 26, 34, 40, and 50-way options IDC Socket pitch: 2.54mm Contact: Copper alloy Plating: Gold flash plated Insulator: Thermoplastic Contact resistance: 20mΩ Insulation resistance: 1000MΩ min. Dielectric withstanding voltage: 500V AC 1 minute Storage temperature: -20°C to +70°C Operating temperature: 0°C to +85°C Approval UL 94 V-0

Read more less

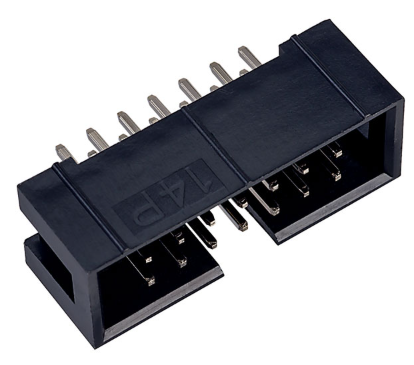

These box headers are a dual row shrouded header for use with our dual row IDC female socket connectors. The low profile, space saving design has a centre slot for the socket's polarization bump. The headers are available also available in right angle PCB mount.  Number of ways: 14 (2x7) Provides a quick and simple interconnection system Gold-plated brass contacts IDC Socket pitch: 2.54mm Contact: Copper alloy Plating: Gold flash plated Insulator: Thermoplastic Contact resistance: 20mΩ Insulation resistance: 1000MΩ min. Dielectric withstanding voltage: 500V AC 1 minute Storage temperature: -20°C to +70°C Operating temperature: 0°C to +85°C Approval UL 94 V-0

Read more less

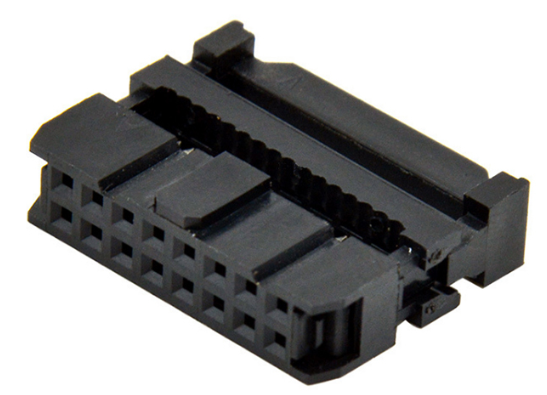

Industry standard ribbon cable connector which mates with 2.54mm pitch PCB headers. The multi-socket connection device forms an electrical connection with flat ribbon cable and is supplied complete with cable strain relief. Number of ways - 16 (2x8) Provides a quick and simple interconnection system With short polarising bump Gold-plated brass contacts Designed for use with ribbon cable IDC Socket pitch: 2.54mm Contact: Brass Plating: Full gold flash Insulator: Thermoplastic Contact resistance: 20mΩ max. (initial) Insulation resistance: 1000mΩ min. Dielectric withstanding voltage: AC 500V per minute. Storage temperature: -20°C to 70°C Operating temperature: 0°C to 85°C Approvals UL 94 V-0

Read more less

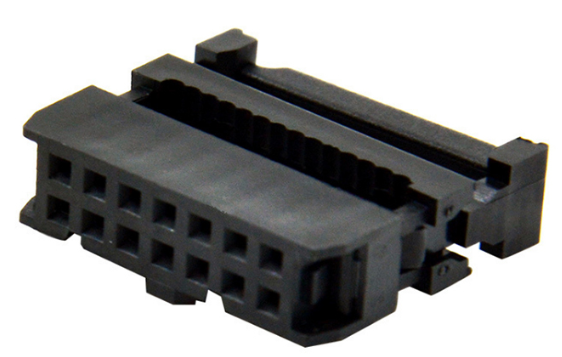

Industry standard ribbon cable connector which mates with 2.54mm pitch PCB headers. The multi-socket connection device forms an electrical connection with flat ribbon cable and is supplied complete with cable strain relief. Number of ways - 14 (2x7) Provides a quick and simple interconnection system With short polarising bump Gold-plated brass contacts Designed for use with ribbon cable IDC Socket pitch: 2.54mm Contact: Brass Plating: Full gold flash Insulator: Thermoplastic Contact resistance: 20mΩ max. (initial) Insulation resistance: 1000mΩ min. Dielectric withstanding voltage: AC 500V per minute. Storage temperature: -20°C to +70°C Operating temperature: 0°C to +85°C Approvals UL 94 V-0

Read more less

This is the optional insulated cover for the MOTM 4 way cable housing. We also stock the associated cable housing and PCB header.  TE Part Number: 640551-4

Read more less

This connector is the MOTM 4 way housing that is attached to the cable of 22AWG conductor size (ideally using the TE IDC tool). We also stock the mating PCB connector and dust cover.  TE Part Number: 3-640428-4

Read more less

This header is the MOTM 4 way. We also stock the mating cable housing and dust cover.  TE Part Number: 640445-4

Read more less

This is the optional insulated cover for the dotcom 6 way cable housing. We also stock the associated cable housing and PCB header.  TE Part Number: 640550-6

Read more less

This connector is the dotcom 6 way housing that is attached to the cable of 22AWG conductor size (ideally using the TE IDC tool). We also stock the mating PCB connector and dust cover.  TE Part Number: 3-640440-6

Read more less

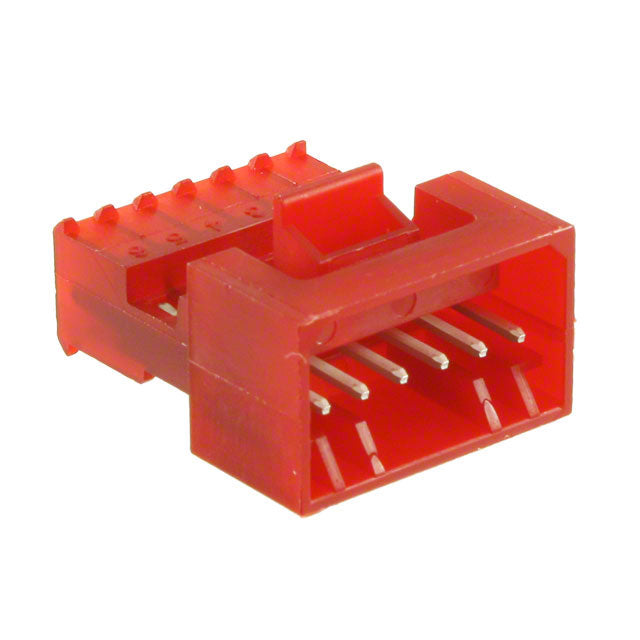

This header is the MU synth dotcom 6 way standard.   TE Part Number: 640456-6

Read more less

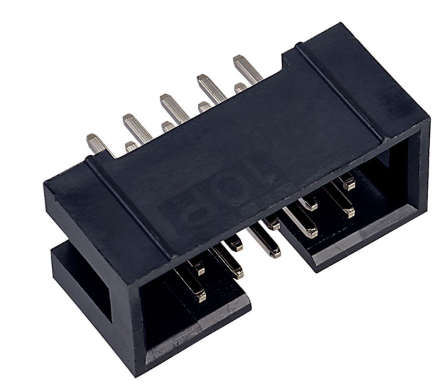

These box headers are a dual row shrouded header for use with our dual row IDC female socket connector 7212-300. The low profile, space saving design has a centre slot for the socket's polarization bump. We use these for the Eurorack PCB connection on our System 345 cases.  Number of ways: 10 (2x5) Provides a quick and simple interconnection system Gold-plated brass contacts IDC Socket pitch: 2.54mm Contact: Copper alloy Plating: Gold flash plated Insulator: Thermoplastic Contact resistance: 20mΩ Insulation resistance: 1000MΩ min. Dielectric withstanding voltage: 500V AC 1 minute Storage temperature: -20°C to +70°C Operating temperature: 0°C to +85°C Approval UL 94 V-0

Read more less

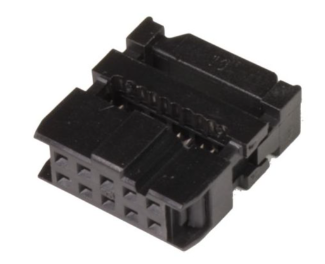

Industry standard ribbon cable connector which mates with 7212-301 PCB header. The multi-socket connection device forms an electrical connection with flat ribbon cable and is supplied complete with cable strain relief.  Number of ways - 10 (2x5) Provides a quick and simple interconnection system With short polarising bump Gold-plated brass contacts Designed for use with ribbon cable IDC Socket pitch: 2.54mm Contact: Brass Plating: Full gold flash Insulator: Thermoplastic Contact resistance: 20mΩ max. (initial) Insulation resistance: 1000mΩ min. Dielectric withstanding voltage: AC 500V per minute. Storage temperature: -20°C to +70°C Operating temperature: 0°C to +85°C Approvals UL 94 V-0

Read more less

Legacy product for the original Soundtronics power distribution PCBs.

Read more less

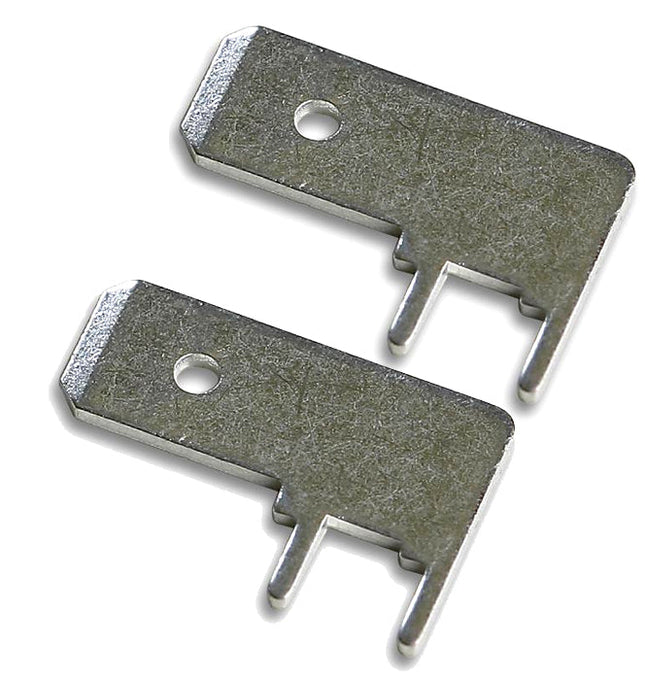

A pair of PCB mounting 1/4" (6.35mm) faston connectors.

Read more less

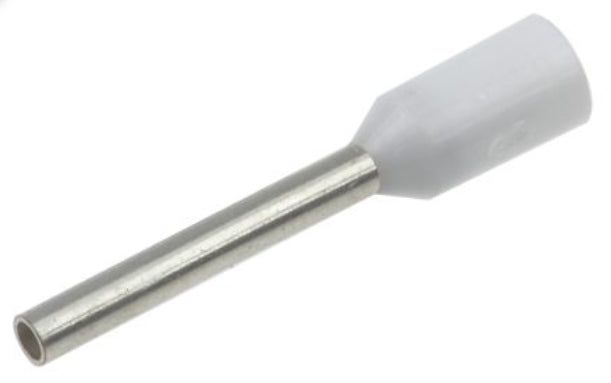

A pack of French spec insulated bootlace ferrules, designed to be crimped or lightly soldered to stranded cable. The ferrules are manufactured from electrolytic copper which is then tin plated. Conductor: single Cable size: 0.50mm Colour: white Pack size: 100

Read more less

A 6-way connector in a white housing. You will need an IDC punchdown tool to make the wire connections to this connector. MTA-100 6-Pin 24-AWG white

Read more less

Commonly used for MY synth modules. Requires a TE punch down tool to insert the wires into the terminals (IDC),

Read more less

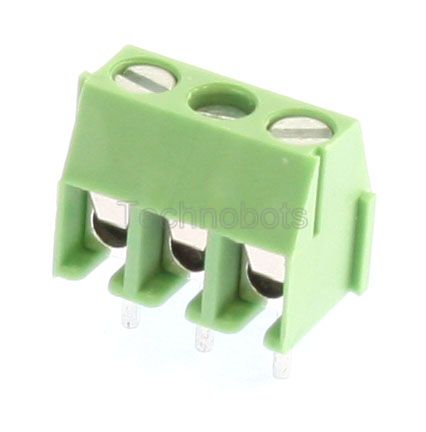

3.5mm pitch 3-way 3.5mm pitch 10A / pole PCB mounting terminal block that is UL94V-0 approved. Slotted screws Rated voltage 130V Rated current 10A Moulded Housing in green flame retardant PA66 Screws zinc plated steel Pin header tin plated brass Wire guard Phosphor bronze UL94V-0 and CSA approved

Read more less

3.5mm pitch 2-way 3.5mm pitch 10A / pole PCB mounting terminal block that is UL94V-0 approved.  Slotted screws Rated voltage 130V Rated current 10A Moulded Housing in green flame retardant PA66 Screws zinc plated steel Pin header tin plated brass Wire guard Phosphor bronze UL94V-0 and CSA approved

Read more less

2.1mm PCB mount power socket Size: 2.1mm x 5.5mm Mounting holes 16mm apart Solder contacts Maximum current: 2A Maximum voltage: 16VDC

Read more less

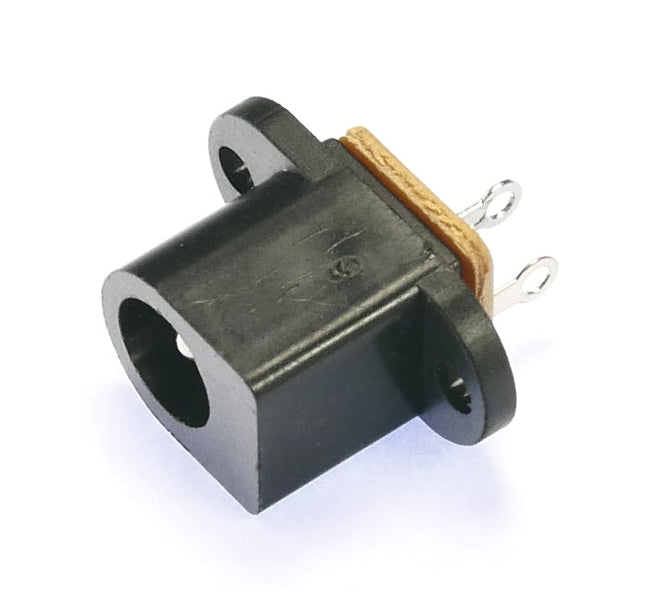

A dc power socket PCB mounting.
