Foot Operated Switches
-
Stomp Switch DPDT Latching Action
Rugged switch with heavy-duty actuator button designed for operation by foot. Ideal for foot pedals in music applications Use for machinery control leaving hands free DPDT contacts Latching action (push on / push off) Rating AC 125V, 6A, AC 250V, 3A, DC 30V, 4A Contact material Silver Contact resistance 50mΩ max. Insulation resistance DC 500V, 100MΩ min. Withstand voltage AC 1000V for 1 minute Operating force 1.2±0.3kgf Travel 2.7mm Overall dimensions 13.4 x 12 x 37mm Depth behind panel 28.5mm Fixing thread 12mm dia. x 0.75mm pitch Life expectancy 30,000 cycles
£5.24
-

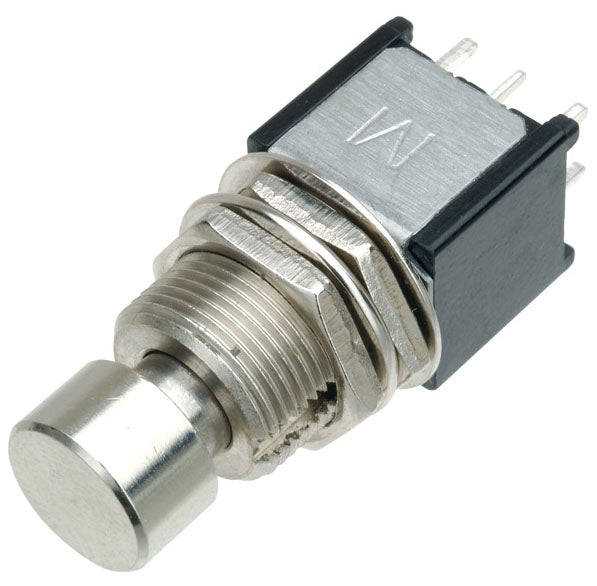

Stomp Switch DPDT Momentary Action
Rugged switch with heavy-duty actuator button designed for operation by foot. Ideal for foot pedals in music applications Use for machinery control leaving hands free DPDT contacts Momentary action (non-latching) Rating AC 125V, 6A, AC 250V, 3A, DC 30V, 4A Contact material Silver Contact resistance 50mΩ max. Insulation resistance DC 500V, 100MΩ min. Withstand voltage AC 1000V for 1 minute Operating force 1.2±0.3kgf Travel 2.7mm Overall dimensions 13.4 x 12 x 37mm Depth behind panel 28.5mm Fixing thread 12mm dia. x 0.75mm pitch Life expectancy 30,000 cycles
£5.24
-

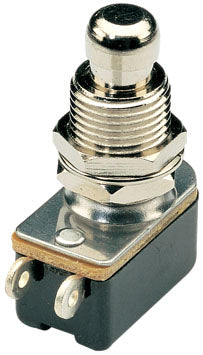

Stomp Foot Switch SPST Momentary Action
Heavy duty foot switch with push to make momentary action. Rated at 250Vac/3A (110Vac 6A). M12 thread of 16mm length and 2 nuts. Large solder tags.Body size 13x13x25mmDiameter 14mmMounting depth 12mm
£1.79
