Polystyrene Capacitors
-
10n Polystyrene Axial 10x12mm
A 10nF 5% polystyrene capacitor for timing circuits etc. Rated at 50Vdc with an axial lead out. Body Size 12mm x 10mm diameter
£0.50
-

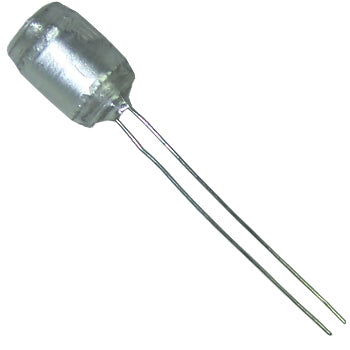

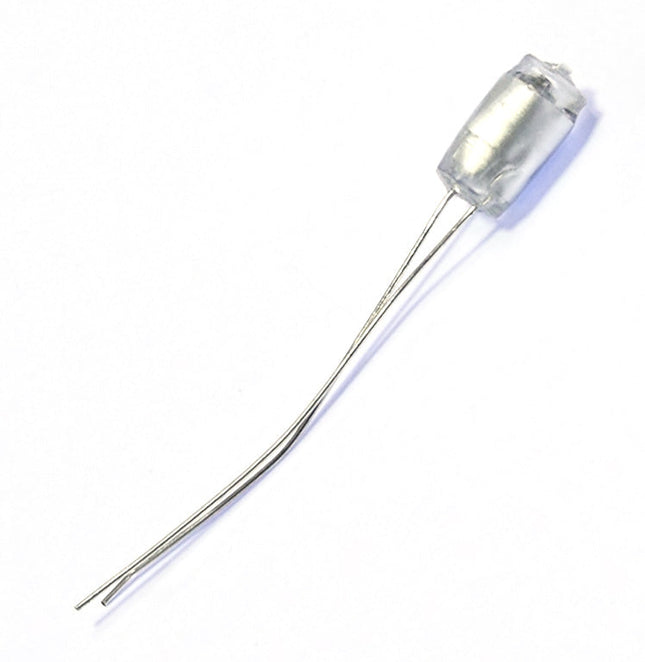

10nF 50V Film Polystyrene Radial Capacitor
A Film type capacitor with a polystyrene dielectric. Manufacturer: Xicon Product Type: General Purpose Dielectric: Polystyrene (PS) Capacitance: 0.01 uF Tolerance: 5 % Voltage Rating: 50 V Operating Temperature Range: - 40 C to + 85 C Termination Style: Radial Case Diameter: 10 mm Case Length: 12 mm Dissipation Factor DF: 0.1% maximum Features Low temperature coefficient High stability and high insulation resistance Wide frequency range Ideal for high frequency circuits, measuring instruments and analogue music synthesisers. Electrodes and lead are spot welded to reduce series resistance Low dissipation factor
£0.61
-

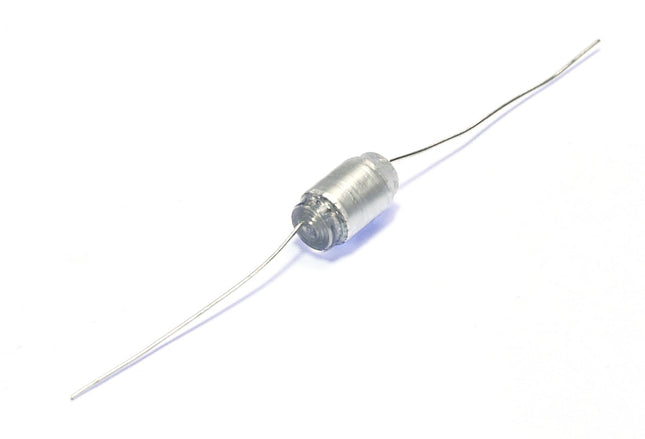

6n8 50V Film Polystyrene Axial Capacitor
A Film type capacitor with a polystyrene dielectric. Manufacturer: Xicon Product Type: General Purpose Dielectric: Polystyrene (PS) Capacitance: 6800 pF Tolerance: 5 % Voltage Rating: 50 V Operating Temperature Range: - 40 C to + 85 C Termination Style: Radial Case Diameter: 9 mm Case Length: 12 mm Dissipation Factor DF: 0.1% maximum Features Low temperature coefficient High stability and high insulation resistance Wide frequency range Ideal for high frequency circuits, measuring instruments and analogue music synthesisers. Electrodes and lead are spot welded to reduce series resistance Low dissipation factor
£0.44
-
5n Polystyrene Axial 8x12mm
A 5nF 5% polystyrene capacitor for timing circuits etc, we use them in our M²Synth kits. Rated at 50Vdc with an axial lead out. Body Size 12mm x 8mm diameter
£0.53
-
5nF 50V Film Polystyrene Radial Capacitor
A Film type capacitor with a polystyrene dielectric. Manufacturer: Xicon Product Type: General Purpose Dielectric: Polystyrene (PS) Capacitance: 5000 pF Tolerance: 5 % Voltage Rating: 50 V Operating Temperature Range: - 40 C to + 85 C Termination Style: Radial Case Diameter: 8.5 mm Case Length: 12 mm Dissipation Factor DF: 0.1% maximum Features Low temperature coefficient High stability and high insulation resistance Wide frequency range Ideal for high frequency circuits, measuring instruments and analogue music synthesisers. Electrodes and lead are spot welded to reduce series resistance Low dissipation factor Manufacturer: Xicon Product Type: General Purpose Dielectric: Polystyrene (PS) Capacitance: 5000 pF Tolerance: 5 % Voltage Rating: 50 V Operating Temperature Range: - 40 C to + 85 C Termination Style: Radial Manufacturer: Xicon Product Type: General Purpose Dielectric: Polystyrene (PS) Capacitance: 5000 pF Tolerance: 5 % Voltage Rating: 50 V Operating Temperature Range: - 40 C to + 85 C Termination Style: Radial Case Diameter: 8.5 mm Case Length: 12 mm Dissipation Factor DF: 0.1 Case Diameter: 8.5 mm Case Length: 12 mm Dissipation Factor DF: 0.1
£0.41
-
2nF 50V Film Polystyrene Axial Capacitor
A Film type capacitor with a polystyrene dielectric. Manufacturer: Xicon Product Type: General Purpose Dielectric: Polystyrene (PS) Capacitance: 2000 pF Tolerance: 5 % Voltage Rating: 50 V Operating Temperature Range: - 40 C to + 85 C Termination Style: Radial Case Diameter: 6.5 mm Case Length: 12 mm Dissipation Factor DF: 0.1% maximum Features Low temperature coefficient High stability and high insulation resistance Wide frequency range Ideal for high frequency circuits, measuring instruments and analogue music synthesisers. Electrodes and lead are spot welded to reduce series resistance Low dissipation factor
£0.30
-

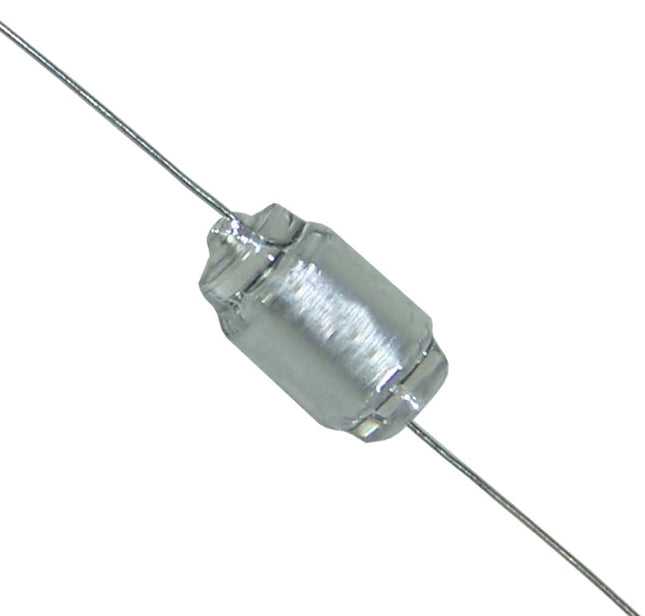

1n Polystyrene Axial 6x12mm
A 1000pF 5% polystyrene capacitor for timing circuits etc. Rated at 50Vdc with an axial lead out. Body Size 12mm x 6mm diameter
£0.38
-
1nF 50V Film Polystyrene Radial Capacitor
A Film type capacitor with a polystyrene dielectric. Manufacturer: Xicon Product Type: General Purpose Dielectric: Polystyrene (PS) Capacitance: 1000 pF Tolerance: 5 % Voltage Rating: 50 V Operating Temperature Range: - 40 C to + 85 C Termination Style: Radial Case Diameter: 6 mm Case Length: 12 mm Dissipation Factor DF: 0.1% maximum Features Low temperature coefficient High stability and high insulation resistance Wide frequency range Ideal for high frequency circuits, measuring instruments and analogue music synthesisers. Electrodes and lead are spot welded to reduce series resistance Low dissipation factor
£0.27
