Splined 20mm Shaft Right Angle Potentiometers

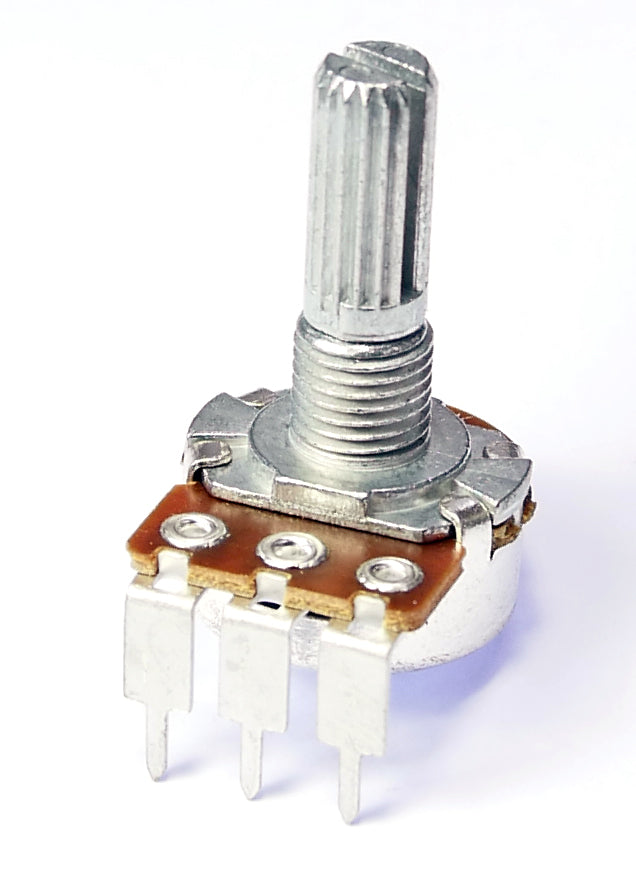

Identical to the standard Soundtronics synth pots but with one important difference, these pots have the legs formed to 90 degrees. This allows the pots to be mounted flat on a PCB like this: Pots come with different tapers so be sure to select the correct one. We carry logarithmic (A taper), linear (B taper) and reverse log (C taper). A few of our synth modules also require stereo (2-gang) pots typically for audio level / volume control. Unless otherwise specified, all pots have a 6mm diameter splined shaft that is suitable for use with our splined shaft knobs. Panel hole cut-out size is 7mm. This products is a Soundtronics branded 1M Log potentiometer. Brand Soundtronics Dimensions Length L: 20mm, A: 11.5mm Pitch 5mm Tolerance +/-20% Power rating 125mW linear, 60mW log. Electrical rotation 300° ±5°

Read more less

Identical to the standard Soundtronics synth pots but with one important difference, these pots have the legs formed to 90 degrees. This allows the pots to be mounted flat on a PCB like this: Pots come with different tapers so be sure to select the correct one. We carry logarithmic (A taper), linear (B taper) and reverse log (C taper). A few of our synth modules also require stereo (2-gang) pots typically for audio level / volume control. Unless otherwise specified, all pots have a 6mm diameter splined shaft that is suitable for use with our splined shaft knobs. Panel hole cut-out size is 7mm. This products is a Soundtronics branded 100k Log potentiometer. Brand Soundtronics Dimensions Length L: 20mm, A: 11.5mm Pitch 5mm Tolerance +/-20% Power rating 125mW linear, 60mW log. Electrical rotation 300° ±5°

Read more less

Identical to the standard Soundtronics synth pots but with one important difference, these pots have the legs formed to 90 degrees. This allows the pots to be mounted flat on a PCB like this: Pots come with different tapers so be sure to select the correct one. We carry logarithmic (A taper), linear (B taper) and reverse log (C taper). A few of our synth modules also require stereo (2-gang) pots typically for audio level / volume control. Unless otherwise specified, all pots have a 6mm diameter splined shaft that is suitable for use with our splined shaft knobs. Panel hole cut-out size is 7mm. This products is a Soundtronics branded 10k Log potentiometer. Brand Soundtronics Dimensions Length L: 20mm, A: 11.5mm Pitch 5mm Tolerance +/-20% Power rating 125mW linear, 60mW log. Electrical rotation 300° ±5°

Read more less

Identical to the standard Soundtronics synth pots but with one important difference, these pots have the legs formed to 90 degrees. This allows the pots to be mounted flat on a PCB like this: Pots come with different tapers so be sure to select the correct one. We carry logarithmic (A taper), linear (B taper) and reverse log (C taper). A few of our synth modules also require stereo (2-gang) pots typically for audio level / volume control. Unless otherwise specified, all pots have a 6mm diameter splined shaft that is suitable for use with our splined shaft knobs. Panel hole cut-out size is 7mm. This products is a Soundtronics branded 1M Lin potentiometer. Brand Soundtronics Dimensions Length L: 20mm, A: 11.5mm Pitch 5mm Tolerance +/-20% Power rating 125mW linear, 60mW log. Electrical rotation 300° ±5°

Read more less

Identical to the standard Soundtronics synth pots but with one important difference, these pots have the legs formed to 90 degrees. This allows the pots to be mounted flat on a PCB like this: Pots come with different tapers so be sure to select the correct one. We carry logarithmic (A taper), linear (B taper) and reverse log (C taper). A few of our synth modules also require stereo (2-gang) pots typically for audio level / volume control. Unless otherwise specified, all pots have a 6mm diameter splined shaft that is suitable for use with our splined shaft knobs. Panel hole cut-out size is 7mm. This products is a Soundtronics branded 100k Lin potentiometer.   Brand Soundtronics Dimensions Length L: 20mm, A: 11.5mm Pitch 5mm Tolerance +/-20% Power rating 125mW linear, 60mW log. Electrical rotation 300° ±5°

Read more less

Identical to the standard Soundtronics synth pots but with one important difference, these pots have the legs formed to 90 degrees. This allows the pots to be mounted flat on a PCB like this: Pots come with different tapers so be sure to select the correct one. We carry logarithmic (A taper), linear (B taper) and reverse log (C taper). A few of our synth modules also require stereo (2-gang) pots typically for audio level / volume control. Unless otherwise specified, all pots have a 6mm diameter splined shaft that is suitable for use with our splined shaft knobs. Panel hole cut-out size is 7mm. This products is a Soundtronics branded 20k Lin potentiometer.   Brand Soundtronics Dimensions Length L: 20mm, A: 11.5mm Pitch 5mm Tolerance +/-20% Power rating 125mW linear, 60mW log. Electrical rotation 300° ±5°

Read more less

Identical to the standard Soundtronics synth pots but with one important difference, these pots have the legs formed to 90 degrees. This allows the pots to be mounted flat on a PCB like this: Pots come with different tapers so be sure to select the correct one. We carry logarithmic (A taper), linear (B taper) and reverse log (C taper). A few of our synth modules also require stereo (2-gang) pots typically for audio level / volume control. Unless otherwise specified, all pots have a 6mm diameter splined shaft that is suitable for use with our splined shaft knobs. Panel hole cut-out size is 7mm. This products is a Soundtronics branded 10k Lin potentiometer. Brand Soundtronics Dimensions Length L: 20mm, A: 11.5mm Pitch 5mm Tolerance +/-20% Power rating 125mW linear, 60mW log. Electrical rotation 300° ±5°

Read more less
