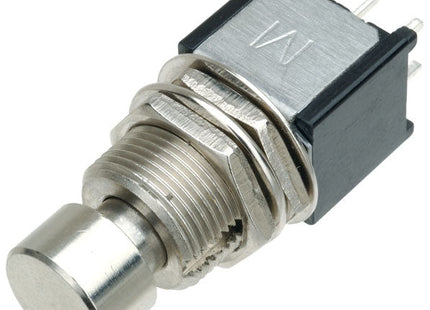

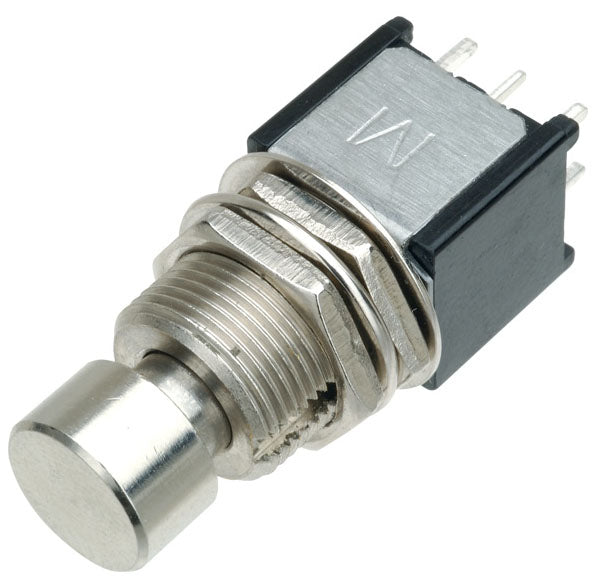

Stomp Switch DPDT Momentary Action

    Description

    Rugged switch with heavy-duty actuator button designed for operation by foot.

    • Ideal for foot pedals in music applications
    • Use for machinery control leaving hands free
    • DPDT contacts
    • Momentary action (non-latching)
    Rating AC 125V, 6A, AC 250V, 3A, DC 30V, 4A
    Contact material Silver
    Contact resistance 50mΩ max.
    Insulation resistance DC 500V, 100MΩ min.
    Withstand voltage AC 1000V for 1 minute
    Operating force 1.2±0.3kgf
    Travel 2.7mm
    Overall dimensions 13.4 x 12 x 37mm
    Depth behind panel 28.5mm
    Fixing thread 12mm dia. x 0.75mm pitch
    Life expectancy 30,000 cycles



    Stomp Switch DPDT Momentary Action

      Product form

      Part No: 7212-257

      Rugged switch with heavy-duty actuator button designed for operation by foot.

      • Ideal for foot pedals in music applications
      • Use... Read more

        Click and Collect at our Rugby store

        In stock, ready to ship

        £5.24 Excl. VAT

        Description

        Rugged switch with heavy-duty actuator button designed for operation by foot.

        • Ideal for foot pedals in music applications
        • Use for machinery control leaving hands free
        • DPDT contacts
        • Momentary action (non-latching)
        Rating AC 125V, 6A, AC 250V, 3A, DC 30V, 4A
        Contact material Silver
        Contact resistance 50mΩ max.
        Insulation resistance DC 500V, 100MΩ min.
        Withstand voltage AC 1000V for 1 minute
        Operating force 1.2±0.3kgf
        Travel 2.7mm
        Overall dimensions 13.4 x 12 x 37mm
        Depth behind panel 28.5mm
        Fixing thread 12mm dia. x 0.75mm pitch
        Life expectancy 30,000 cycles
