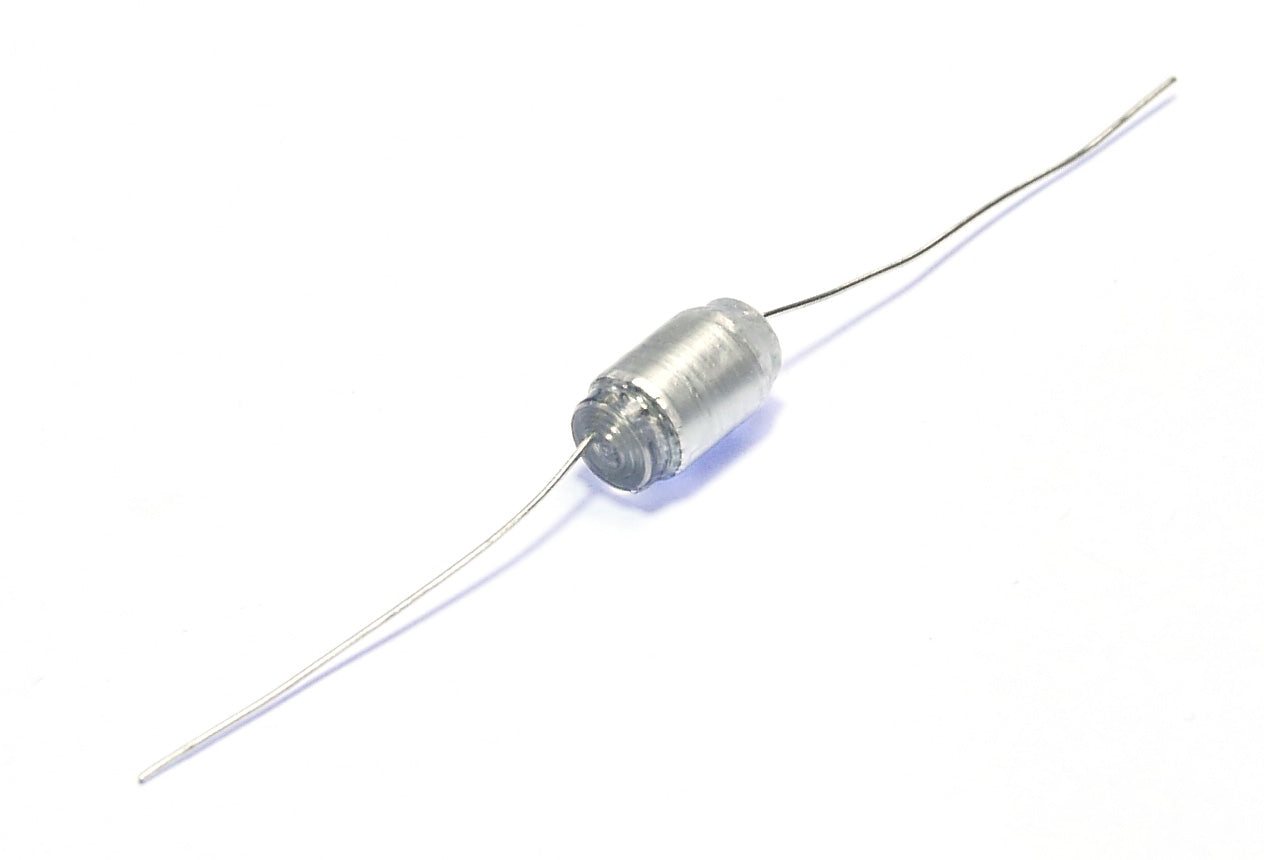

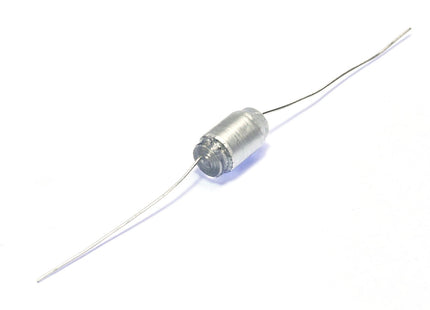

6n8 50V Film Polystyrene Axial Capacitor

    Description

    A Film type capacitor with a polystyrene dielectric.

    • Manufacturer:   Xicon
    • Product Type:   General Purpose
    • Dielectric: Polystyrene (PS)
    • Capacitance: 6800 pF
    • Tolerance: 5 %
    • Voltage Rating: 50 V
    • Operating Temperature Range: - 40 C to + 85 C
    • Termination Style: Radial
    • Case Diameter: 9 mm
    • Case Length: 12 mm
    • Dissipation Factor DF: 0.1% maximum

    Features

    • Low temperature coefficient
    • High stability and high insulation resistance
    • Wide frequency range
    • Ideal for high frequency circuits, measuring instruments and analogue music synthesisers.
    • Electrodes and lead are spot welded to reduce series resistance
    • Low dissipation factor

    6n8 50V Film Polystyrene Axial Capacitor

      Product form

      Part No: 2069-232

      A Film type capacitor with a polystyrene dielectric.

      • Manufacturer:   Xicon
      • Product Type:   General Purpose... Read more

        Click and Collect at our Rugby store

        In stock, ready to ship

        £0.44 Excl. VAT

        Minimum quantity for "6n8 50V Film Polystyrene Axial Capacitor" is 2.

        Description

        A Film type capacitor with a polystyrene dielectric.

        • Manufacturer:   Xicon
        • Product Type:   General Purpose
        • Dielectric: Polystyrene (PS)
        • Capacitance: 6800 pF
        • Tolerance: 5 %
        • Voltage Rating: 50 V
        • Operating Temperature Range: - 40 C to + 85 C
        • Termination Style: Radial
        • Case Diameter: 9 mm
        • Case Length: 12 mm
        • Dissipation Factor DF: 0.1% maximum

        Features

        • Low temperature coefficient
        • High stability and high insulation resistance
        • Wide frequency range
        • Ideal for high frequency circuits, measuring instruments and analogue music synthesisers.
        • Electrodes and lead are spot welded to reduce series resistance
        • Low dissipation factor
