Description

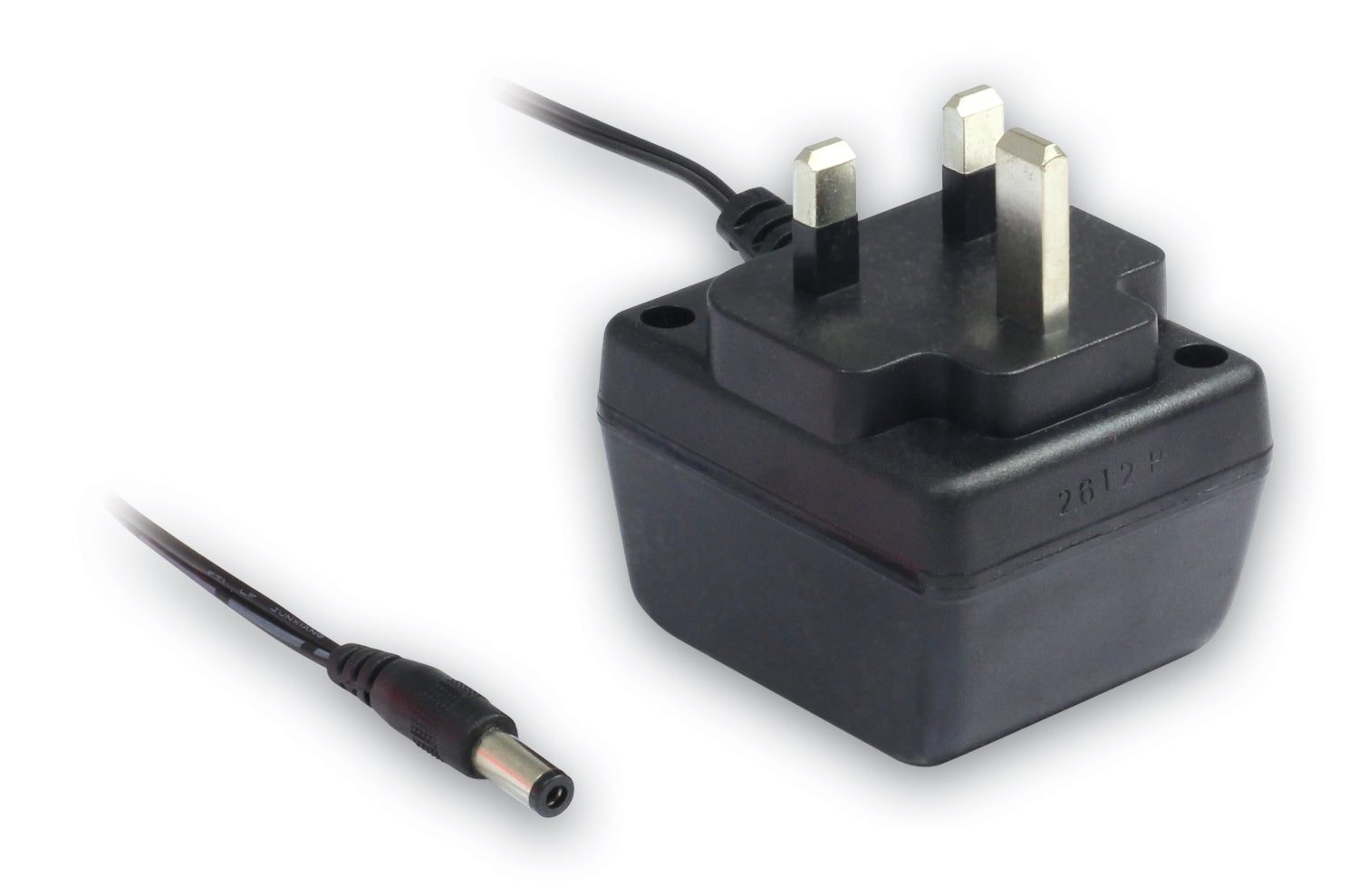

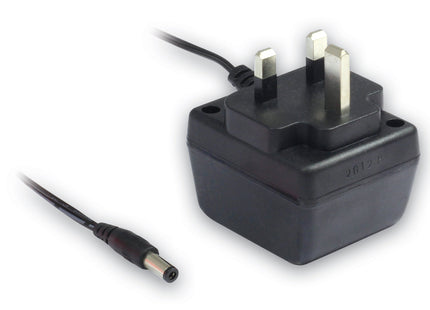

12Vac 600mA (note AC not DC). Fitted with a 2.1mm power plug lead (1.8m long). UK Plug only, for EU (lower power) version see here.
7.2VA AC/AC External Adapter UK Plugtop Power Supply (PSU) Series are certified
to UKCA, CE, TUV, RoHS, REACH & EN 62368-1/IEC 62368-1/IEC 61558-1/IEC 61558-2-10 Standards and
comply with (EU) 2019/1782, Level VI Efficiency Regulations.
Plug in Linear AC/AC Adaptor 7.2VA output Power
- EN61558-1, EN61558-2-6, EN60065 Approved
- Protection Type: One-Shot Thermal Fuse
- V-0 Rated Enclosure
- Operating Temperature -10~40°C
- RoHS & CE Directive Compliant
- Light Weight: 285g only
- ERP II Regulations Compliant
Approved to UK & European Standards
| Voltage/Current |
12Vac, 600mA |
| Power max. |
7.2W |
| Output voltage |
12Vac |
| Output current max. |
600mA |
The unit to be powered must not draw more current than the maximum continuous current of the power supply, in order to prevent overload. The continuous current draw, should be no more than 80% of the output current max (400mA).
