16-Way Flat Ribbon x 1m

    Description

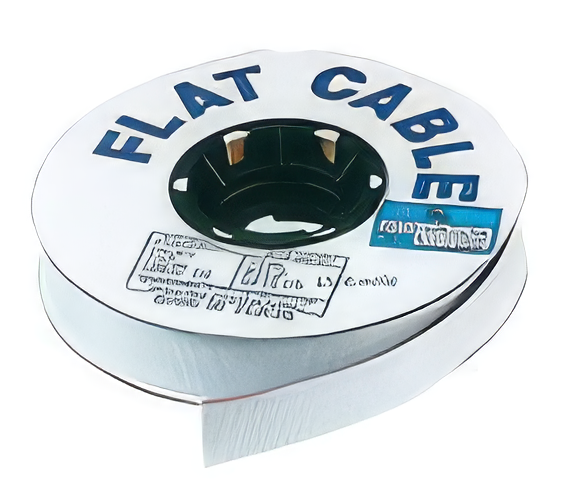

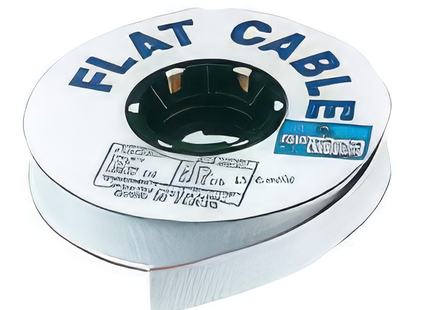

    16-Way Ribbon cable in grey in a cut length of 1m for use with all styles of IDC connectors.


    • Consists of parallel stranded tinned copper wire conductors laminated between layers of PVC film to form a flat ribbon cable
    • May be split into individual cores
    • Conductor spacing 0.05in
    • Grey cable has red identification band
    • Fully UL approved to style UL2651
    • Supplied per metre

    Conductor:                   7/0.127mm tin plated copper (28AWG)

    Conductor rating:          1A 300V per conductor

    Pitch:                            0.05in (1.27mm)

    Conductor resistance:   235Ω/Km (max.)

    Capacitance:                 46pF/m

    Temperature range:       –20°C to +105°C

    16-Way Flat Ribbon x 1m

      Product form

      Part No: 7210-120

      16-Way Ribbon... Read more

      Click and Collect at our Rugby store

      In stock, ready to ship

      £2.13 Excl. VAT

        Description

        16-Way Ribbon cable in grey in a cut length of 1m for use with all styles of IDC connectors.


        • Consists of parallel stranded tinned copper wire conductors laminated between layers of PVC film to form a flat ribbon cable
        • May be split into individual cores
        • Conductor spacing 0.05in
        • Grey cable has red identification band
        • Fully UL approved to style UL2651
        • Supplied per metre

        Conductor:                   7/0.127mm tin plated copper (28AWG)

        Conductor rating:          1A 300V per conductor

        Pitch:                            0.05in (1.27mm)

        Conductor resistance:   235Ω/Km (max.)

        Capacitance:                 46pF/m

        Temperature range:       –20°C to +105°C
