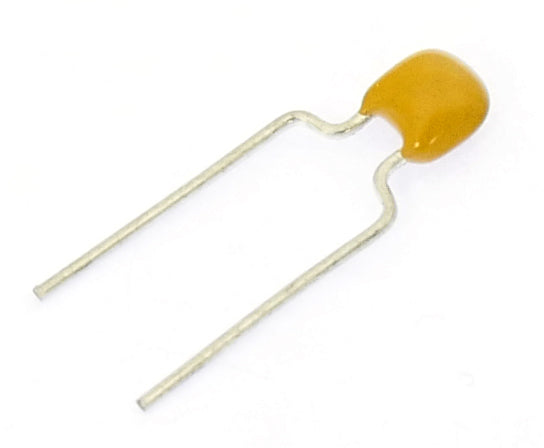

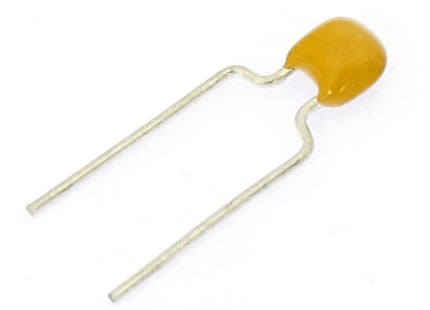

22pF 5.08mm COG NPO Monolithic Radial Ceramic Capacitor

    Description

    Radial Multi-layer Ceramic Capacitors. The COG (NPO) series is a high Q, low K temperature compensating type of dielectric with stable electrical properties under varying voltage, temperature, frequency and time.

    The series is suitable for circuits requiring low loss, circuits with pulse, timing circuits and tuning applications.

    Features:

    • Very low temperature coefficient
    • Stable electrical characteristics
    • High capacitance and miniature size
    • Consistent dimensions and surface finish
    • Engineered for automatic feeding and insertion

    General Specifications:

    • Operating temperature range: -55 to 125°C
    • Temperature coefficient, DC max. : 0 ±30 ppm/°C
    • Temp-voltage coefficient DC max.: @WVDC: 0 ±30 ppm/°C
    • Maximum working voltage: 50Vdc
    • Tolerance: 5%

    22pF 5.08mm COG NPO Monolithic Radial Ceramic Capacitor

      Product form

      Part No: 7212-776

      Radial Multi-layer Ceramic Capacitors. The COG (NPO) series is a high Q, low K temperature compensating type of dielectric with... Read more

      Click and Collect at our Rugby store

      In stock, ready to ship

      £0.10 Excl. VAT

      Minimum quantity for "22pF 5.08mm COG NPO Monolithic Radial Ceramic Capacitor" is 10.

        Description

        Radial Multi-layer Ceramic Capacitors. The COG (NPO) series is a high Q, low K temperature compensating type of dielectric with stable electrical properties under varying voltage, temperature, frequency and time.

        The series is suitable for circuits requiring low loss, circuits with pulse, timing circuits and tuning applications.

        Features:

        • Very low temperature coefficient
        • Stable electrical characteristics
        • High capacitance and miniature size
        • Consistent dimensions and surface finish
        • Engineered for automatic feeding and insertion

        General Specifications:

        • Operating temperature range: -55 to 125°C
        • Temperature coefficient, DC max. : 0 ±30 ppm/°C
        • Temp-voltage coefficient DC max.: @WVDC: 0 ±30 ppm/°C
        • Maximum working voltage: 50Vdc
        • Tolerance: 5%
