Description
The CEM range of synth chips featured in numerous commercial and DIY synths in the 80’s before they ceased production. A number of the chips have been remanufactured by a Latvian electronics company and we delighted to be able to offer them through Soundtronics.

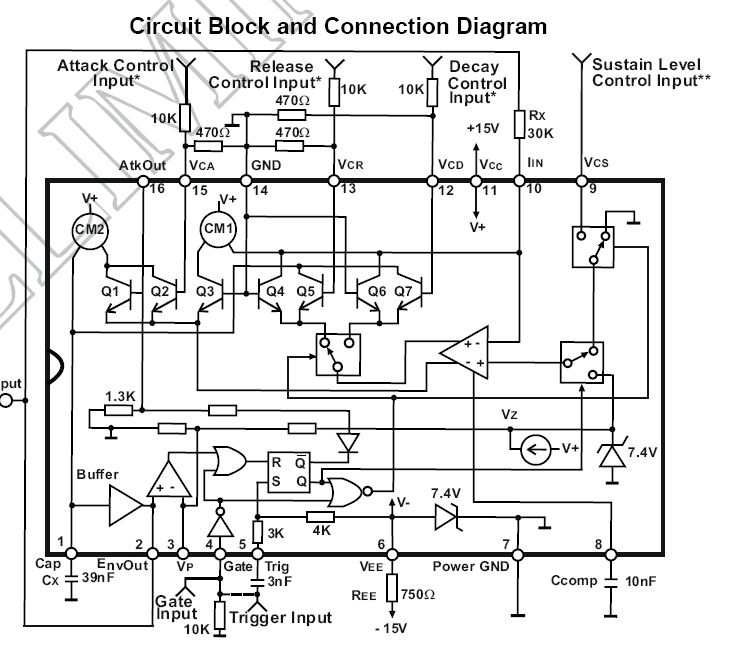

The AS3310 is a self-contained, precision ADSR type of envelope generator intended for electronic music and other sound generation applications. Attack, decay and release times are exponentially voltage controllable over a wide range, and the sustain level is linearly voltage controllable from 0 to 100% of the peak voltage Vp. All four control Inputs are Isolated from the rest of the circuitry so that the control pins of tracking units may be simply tied together.
Features
- Large Time Control Range: 100,000:1
- Full ADSR Response
- True RC Envelope Shape
- Exceptionally Low Control Voltage Feed through: 90μVmax
- Accurate Exponential Time Control Scales
- Isolated Control Inputs
- Good Repeatability and Tracking Between Units Without External Trim
- Independent Gate and Trigger
- Wide power supply range:
negative rail: -15V to -9V (via external resistor), positive rail: +11V to +15V
