Description

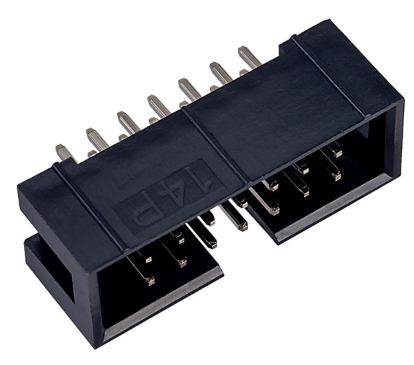

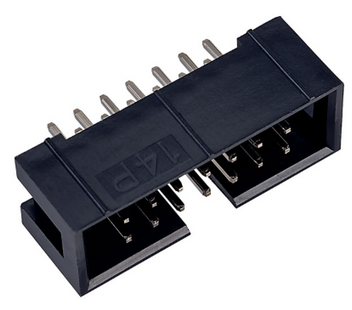

These box headers are a dual row shrouded header for use with our dual row IDC female socket connectors. The low profile, space saving design has a centre slot for the socket's polarization bump. The headers are available also available in right angle PCB mount.
- Number of ways: 14 (2x7)
- Provides a quick and simple interconnection system
- Gold-plated brass contacts
| IDC Socket pitch: |
2.54mm |
| Contact: |
Copper alloy |
| Plating: |
Gold flash plated |
| Insulator: |
Thermoplastic |
| Contact resistance: |
20mΩ |
| Insulation resistance: |
1000MΩ min. |
| Dielectric withstanding voltage: |
500V AC 1 minute |
| Storage temperature: |
-20°C to +70°C |
| Operating temperature: |
0°C to +85°C |
| Approval |
UL 94 V-0 |
