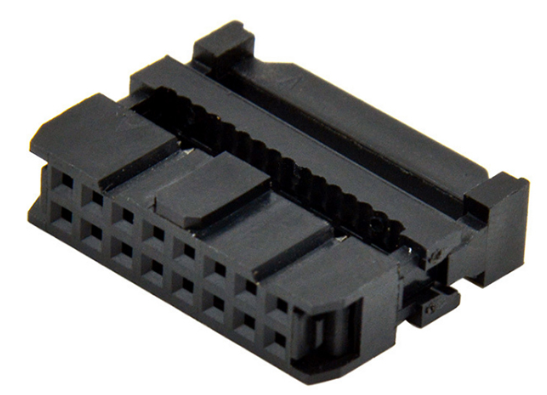

HE10 Female Socket 2x8 pns

    Description

    Industry standard ribbon cable connector which mates with 2.54mm pitch PCB headers. The multi-socket connection device forms an electrical connection with flat ribbon cable and is supplied complete with cable strain relief.

    • Number of ways - 16 (2x8)
    • Provides a quick and simple interconnection system
    • With short polarising bump
    • Gold-plated brass contacts
    • Designed for use with ribbon cable
    IDC Socket pitch: 2.54mm
    Contact: Brass
    Plating: Full gold flash
    Insulator: Thermoplastic
    Contact resistance: 20mΩ max. (initial)
    Insulation resistance: 1000mΩ min.
    Dielectric withstanding voltage: AC 500V per minute.
    Storage temperature: -20°C to 70°C
    Operating temperature: 0°C to 85°C
    Approvals UL 94 V-0

    HE10 Female Socket 2x8 pns

      Product form

      Part No: 7212-310

      Industry standard ribbon cable connector which mates with 2.54mm pitch PCB headers. The multi-socket connection device forms an electrical connection... Read more

      Click and Collect at our Rugby store

      In stock, ready to ship

      £0.22 Excl. VAT

      Minimum quantity for "HE10 Female Socket 2x8 pns" is 5.

        Description

        Industry standard ribbon cable connector which mates with 2.54mm pitch PCB headers. The multi-socket connection device forms an electrical connection with flat ribbon cable and is supplied complete with cable strain relief.

        • Number of ways - 16 (2x8)
        • Provides a quick and simple interconnection system
        • With short polarising bump
        • Gold-plated brass contacts
        • Designed for use with ribbon cable
        IDC Socket pitch: 2.54mm
        Contact: Brass
        Plating: Full gold flash
        Insulator: Thermoplastic
        Contact resistance: 20mΩ max. (initial)
        Insulation resistance: 1000mΩ min.
        Dielectric withstanding voltage: AC 500V per minute.
        Storage temperature: -20°C to 70°C
        Operating temperature: 0°C to 85°C
        Approvals UL 94 V-0
