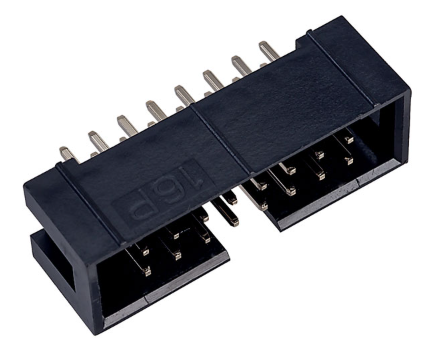

HE10 Male Socket 2x8 pns

    Description

    These box headers are a dual row shrouded header for use with our dual row IDC female socket connectors. The low profile, space saving design has a centre slot for the socket's polarization bump. The headers are available also available in right angle PCB mount.


    • Number of ways: 16 (2x8)
    • Provides a quick and simple interconnection system
    • Gold-plated brass contacts
    • Designed for use with ribbon cable
    • Available in 10, 14, 16, 20, 26, 34, 40, and 50-way options
    IDC Socket pitch: 2.54mm
    Contact: Copper alloy
    Plating: Gold flash plated
    Insulator: Thermoplastic
    Contact resistance: 20mΩ
    Insulation resistance: 1000MΩ min.
    Dielectric withstanding voltage: 500V AC 1 minute
    Storage temperature: -20°C to +70°C
    Operating temperature: 0°C to +85°C
    Approval UL 94 V-0

      HE10 Male Socket 2x8 pns

        Product form

        Part No: 7212-313

        These box headers are a dual row shrouded header for use with our dual row IDC female socket connectors. The... Read more

        Click and Collect at our Rugby store

        In stock, ready to ship

        £0.27 Excl. VAT

        Minimum quantity for "HE10 Male Socket 2x8 pns" is 5.

          Description

          These box headers are a dual row shrouded header for use with our dual row IDC female socket connectors. The low profile, space saving design has a centre slot for the socket's polarization bump. The headers are available also available in right angle PCB mount.


          • Number of ways: 16 (2x8)
          • Provides a quick and simple interconnection system
          • Gold-plated brass contacts
          • Designed for use with ribbon cable
          • Available in 10, 14, 16, 20, 26, 34, 40, and 50-way options
          IDC Socket pitch: 2.54mm
          Contact: Copper alloy
          Plating: Gold flash plated
          Insulator: Thermoplastic
          Contact resistance: 20mΩ
          Insulation resistance: 1000MΩ min.
          Dielectric withstanding voltage: 500V AC 1 minute
          Storage temperature: -20°C to +70°C
          Operating temperature: 0°C to +85°C
          Approval UL 94 V-0
