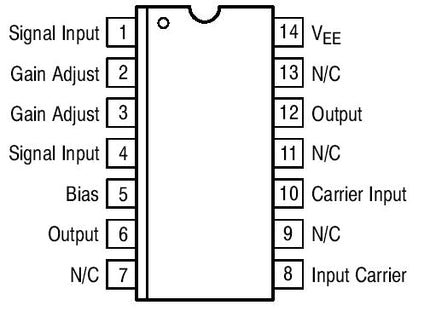

MC1496DR2G Balanced Modulator / Demodulator SOIC-14 Case

    Description

    The MC1496DG is becoming increasingly more difficult to find in DIP form. This surface mount version is suitable for our 'ring modulators'.

    These devices were designed for use where the output voltage is a product of an input voltage (signal) and a switching function (carrier). Typical applications include suppressed carrier and amplitude modulation, synchronous detection, FM detection, phase detection, and chopper applications.
    Features
    • Excellent Carrier Suppression −65 dB typ @ 0.5 MHz
    −50 dB typ @ 10 MHz
    • Adjustable Gain and Signal Handling
    • Balanced Inputs and Outputs
    • High Common Mode Rejection −85 dB Typical
    • This Device Contains 8 Active Transistors
    • Pb−Free Package is Available*

    MC1496DR2G Balanced Modulator / Demodulator SOIC-14 Case

      Product form

      Part No: 7212-502

      The MC1496DG is becoming increasingly more difficult to find in DIP form. This surface mount version is suitable for our... Read more

      Click and Collect at our Rugby store

      In stock, ready to ship

      £1.04 Excl. VAT

        Description

        The MC1496DG is becoming increasingly more difficult to find in DIP form. This surface mount version is suitable for our 'ring modulators'.

        These devices were designed for use where the output voltage is a product of an input voltage (signal) and a switching function (carrier). Typical applications include suppressed carrier and amplitude modulation, synchronous detection, FM detection, phase detection, and chopper applications.
        Features
        • Excellent Carrier Suppression −65 dB typ @ 0.5 MHz
        −50 dB typ @ 10 MHz
        • Adjustable Gain and Signal Handling
        • Balanced Inputs and Outputs
        • High Common Mode Rejection −85 dB Typical
        • This Device Contains 8 Active Transistors
        • Pb−Free Package is Available*
