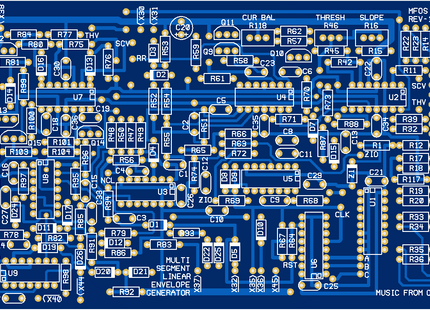

MFOS Seven Segment Linear Envelope Generator Bare PCB

  • MFOS

Description

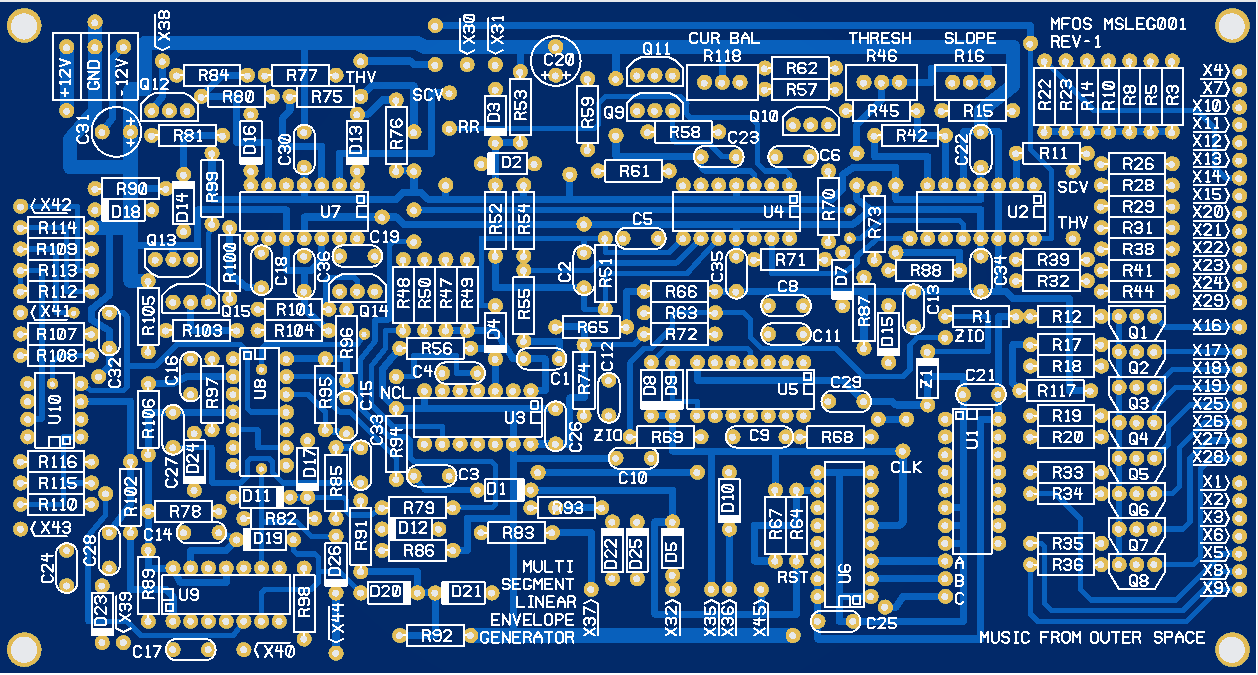

A bare PCB for the MFOS Seven Segment Envelope Generator project.

Features

  • Selectable Two to Seven Linear Envelope Segments
  • Positive and Negative Slopes
  • Triggered Mode Supports Sustain Segments
  • Gate Mode 1: Complete Envelope on Gate Release.
  • Gate Mode 2: Reset Envelope on Gate Release.
  • Level and Polarity Output Control
  • Two millisecond to several minutes long segment times.
  • Slope runaway detect and reset.
  • Envelope Repeat
  • Manual Gate
  • LEDs Identify Active Segment

Supplied without components or instructions. For build instructions see the MFOS website.

Soundtronics (Sonic Synths) MFOS Projects are authorized by Music From Outer Space

MFOS Seven Segment Linear Envelope Generator Bare PCB

  • MFOS
Product form

Part No: 7210-022

A bare PCB for the MFOS Seven Segment Envelope Generator project.

Features

  • Selectable Two... Read more

    Click and Collect at our Rugby store

    In stock, ready to ship

    £24.00 Excl. VAT

    Description

    A bare PCB for the MFOS Seven Segment Envelope Generator project.

    Features

    • Selectable Two to Seven Linear Envelope Segments
    • Positive and Negative Slopes
    • Triggered Mode Supports Sustain Segments
    • Gate Mode 1: Complete Envelope on Gate Release.
    • Gate Mode 2: Reset Envelope on Gate Release.
    • Level and Polarity Output Control
    • Two millisecond to several minutes long segment times.
    • Slope runaway detect and reset.
    • Envelope Repeat
    • Manual Gate
    • LEDs Identify Active Segment

    Supplied without components or instructions. For build instructions see the MFOS website.

    Soundtronics (Sonic Synths) MFOS Projects are authorized by Music From Outer Space
