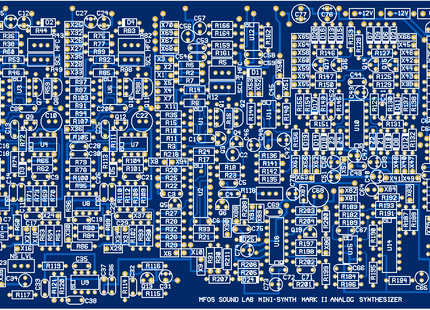

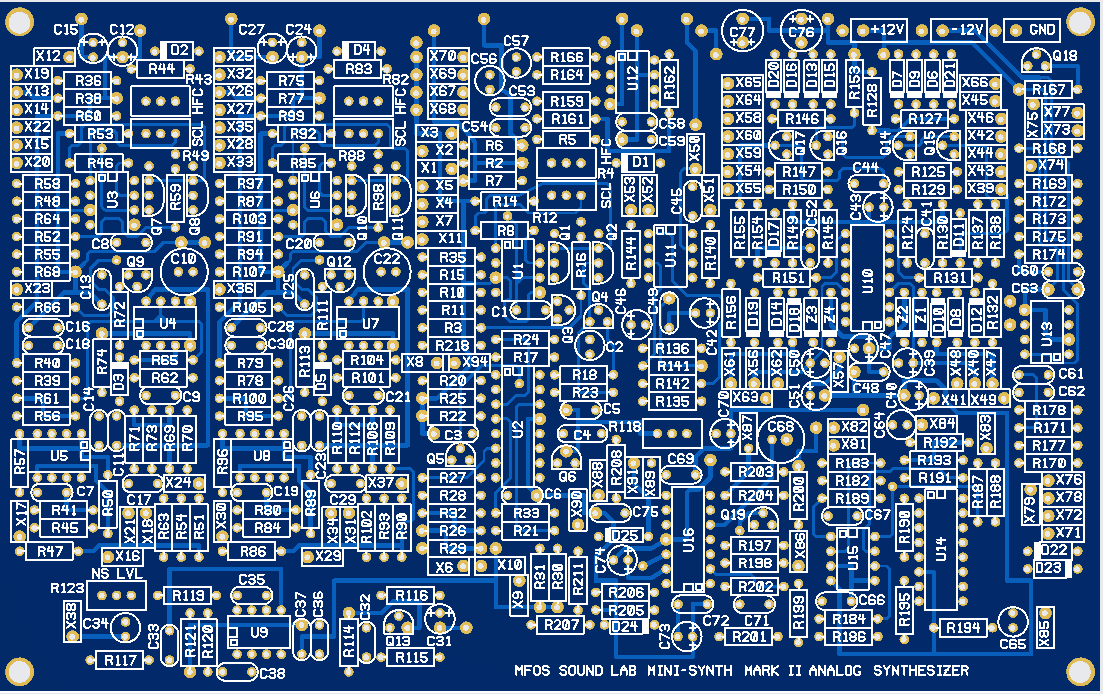

A bare PCB for the MFOS Sound Lab Mini-Synth MKII project.
Features
- Two Musically Accurate VCOs With 1V/Octave Tracking
- White Noise Generator
- Audio Mixer With External Input
- State Variable VCF Low-Pass & Band Pass Response
- VCF Doubles As 1V/Oct Tracking Sine Wave Oscillator
- VCF Has Multiple Modulation Options
- VCA Has Multiple Modulation Options
- LFO (Ramp, Saw, Tri and Square)
- Two AD/AR Generators
- Keyboard Control Inputs
- VCOs and VCF Normalized To Keyboard CV Input
- AD/AR Generators Normalized To Keyboard Gate Input
- Patchable Sample And Hold
- Two Repeat Gate Generators for AD/AR Generators
- AD/AR Generators Normalized For S&H Triggering
Supplied without components or instructions. For build instructions see the
MFOS website.
Soundtronics (Sonic Synths) MFOS Projects are authorized by Music From Outer Space
