Description

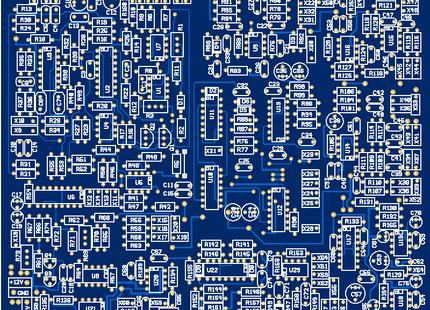

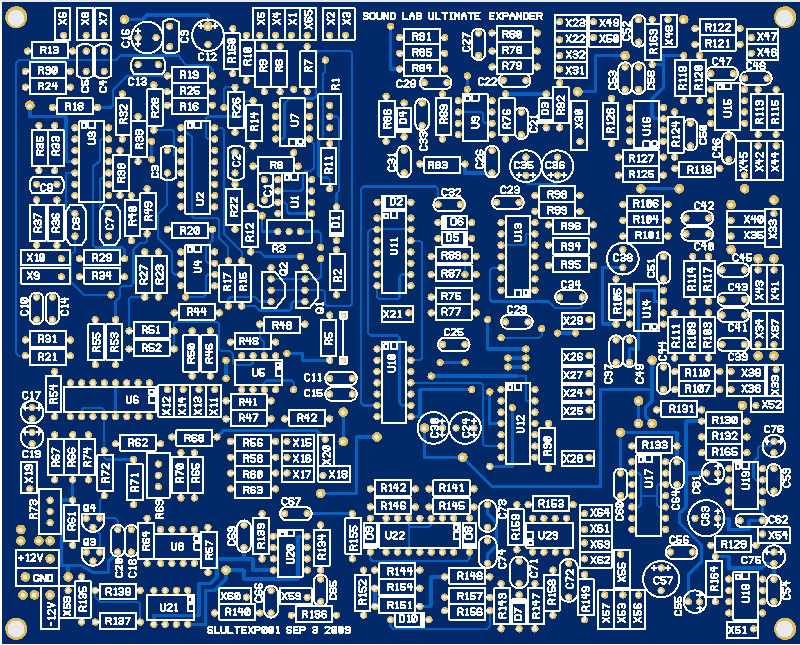

A bare PCB for the MFOS Sound Lab Expander project.
The MFOS Sound Lab ULTIMATE EXPANDER in combination with an MFOS Sound Lab ULTIMATE is a completely full featured modular synthesizer. Although specifically designed to be a companion to the Sound Lab ULTIMATE the ULTIMATE EXPANDER has the features to stand as a super "on its own Swiss Army Knife" module. The MFOS Sound Lab ULTIMATE EXPANDER includes:
- A State Variable Voltage Controlled Filter (doubles as a 1V/oct sine wave oscillator over several octaves)
- A Voltage Controlled Amplifier (expo response)
- An ADSR Envelope Generator
- A Four Channel Active Mixer
- A One-In Three-Out Voltage Distributor
- A CV Inverter
- An Analog Multiplier (Ring Modulator)
- An External Signal Buffer
- An Envelope Follower
- Two Passive Voltage Attenuators
- A Headphone Amplifier
- Signal Routing and Buffering for The Sound Lab ULTIMATE
- Patch Panel Design
Supplied without components or instructions. For build instructions see the MFOS website.
Soundtronics (Sonic Synths) MFOS Projects are authorized by Music From Outer Space
