Description

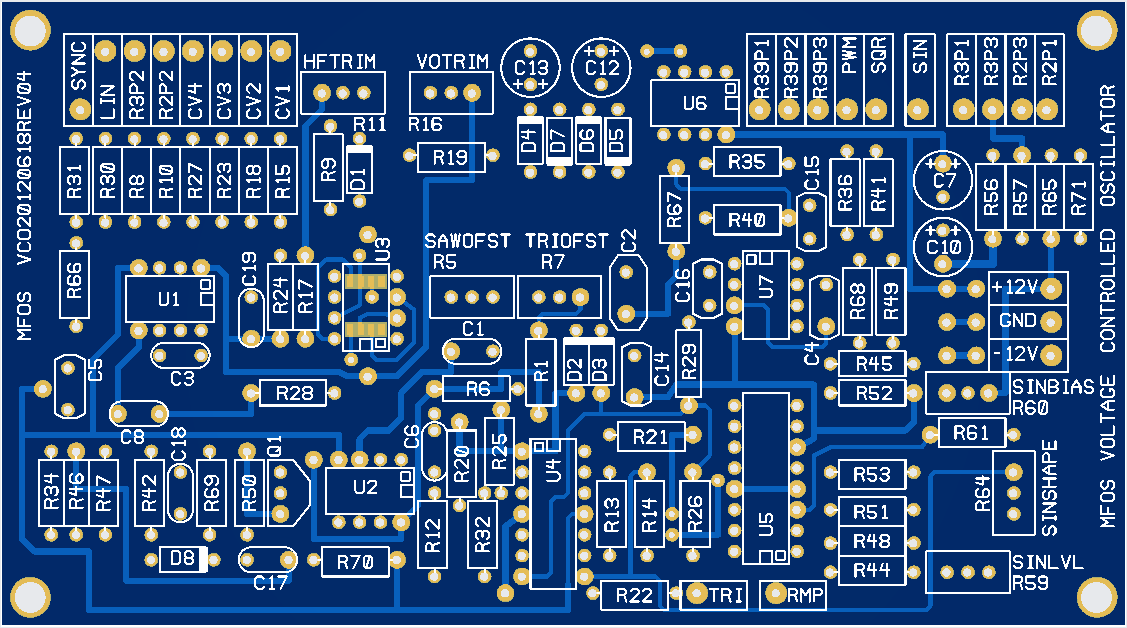

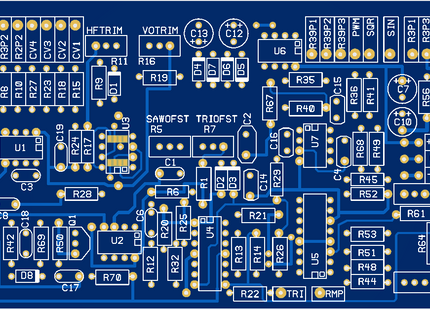

A bare PCB for the MFOS Voltage Controlled Oscillator which allows use of SOIC or DIP8 SSM2210 or SSM2212 dual NPN package or discrete matched NPN pair.
- Years of MFOS VCO improvements all rolled into this design.
- Good tracking over several octaves (6 to 8).
- Can be temperature compensated with a metal film 2K Ohm 1/4W +/-2% T.C. +3300 PPM tempco.
- Simultaneous Rectangle, Ramp, Triangle and Sine Outputs (Ramp core design)
- Designed for 1V/Octave control voltage
- 4 1V/Octave control voltage inputs.
- 1 Linear control voltage input.
- Hard sync input.
- Rectangle wave duty cycle adjustable between 10% and 90%
- Rectangle wave duty cycle voltage controllable
- Frequency range is from sub audible (approximately 0.1 hertz) to ultra-sonic 20kHz.
Supplied without components or instructions. For build instructions see the MFOS website.
Soundtronics (Sonic Synths) MFOS Projects are authorized by Music From Outer Space
