NPN Matched Transistor Pair Breakout Board (DMMT3904W)

    Description

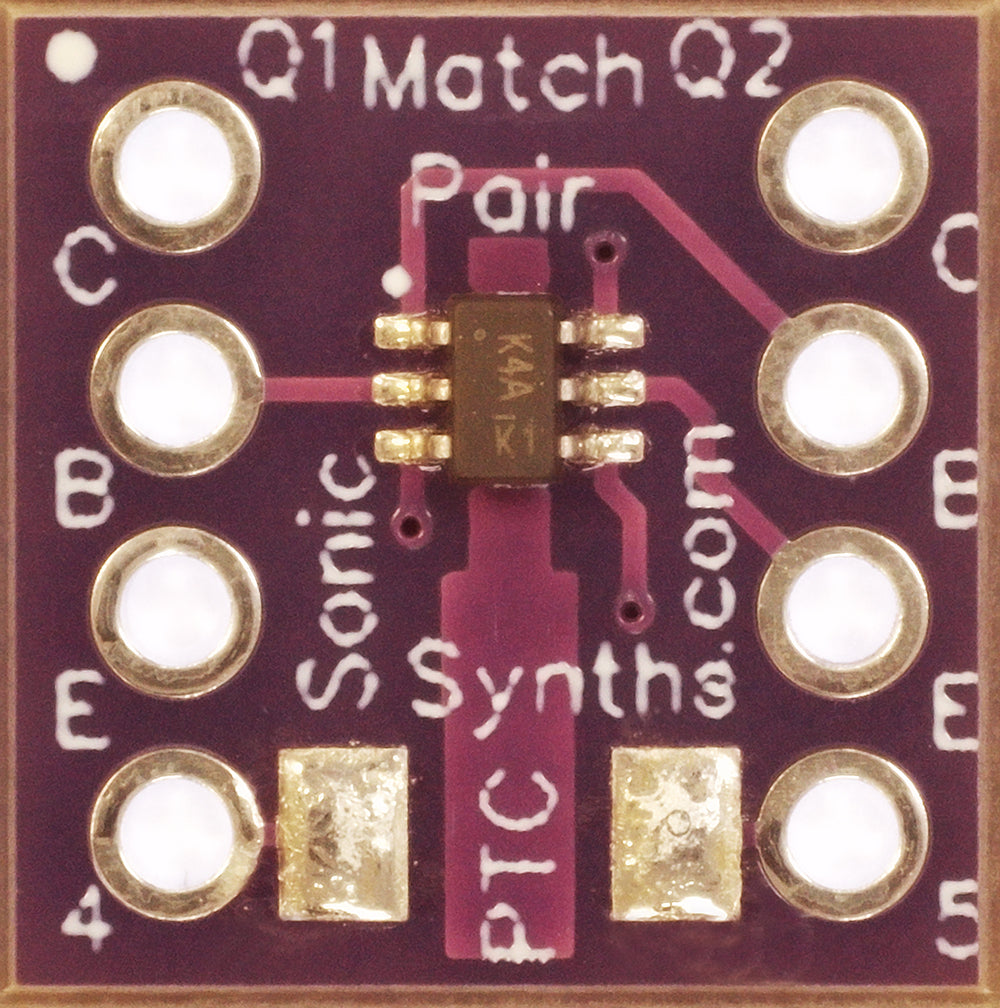

    A DMMT3904W matched NPN transistor pair ready mounted on a breakout board based on a DIP8 footprint. Supplied complete with a pair of female and a pair of male headers.

    Typically used for exponential conversion in VCO and VCF circuits to achieve a 1V/octave response.

    Pins 4 & 5 can be used for a tempco and with the male headers, it is breadboard friendly. Use the female headers on your PCB as an IC socket.

    Pin compatible with the SSM2210 & LM394 and our MFOS VCO.

    Specification

    • PCB Size: 11.5 x 11.5mm
    • hFE Matching: 2% max, typically 1%
    • VBE Matching 2mV max, typically 1mV
    • VCBO: 60V max
    • VCEO: 40V max
    • VEBO 6V max
    • PD: 200mW
    • IC: 200mA
    • RoHS Compliant

    For more electrical information, see the DMMT3904W datasheet







    NPN Matched Transistor Pair Breakout Board (DMMT3904W)

      Product form

      Part No: 7214-904

      A DMMT3904W matched NPN transistor pair ready mounted on a breakout board based on a DIP8 footprint. Supplied complete with... Read more

      Click and Collect at our Rugby store

      In stock, ready to ship

      £1.95 Excl. VAT

        Description

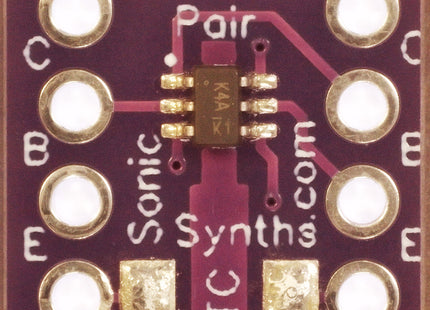

        A DMMT3904W matched NPN transistor pair ready mounted on a breakout board based on a DIP8 footprint. Supplied complete with a pair of female and a pair of male headers.

        Typically used for exponential conversion in VCO and VCF circuits to achieve a 1V/octave response.

        Pins 4 & 5 can be used for a tempco and with the male headers, it is breadboard friendly. Use the female headers on your PCB as an IC socket.

        Pin compatible with the SSM2210 & LM394 and our MFOS VCO.

        Specification

        • PCB Size: 11.5 x 11.5mm
        • hFE Matching: 2% max, typically 1%
        • VBE Matching 2mV max, typically 1mV
        • VCBO: 60V max
        • VCEO: 40V max
        • VEBO 6V max
        • PD: 200mW
        • IC: 200mA
        • RoHS Compliant

        For more electrical information, see the DMMT3904W datasheet
