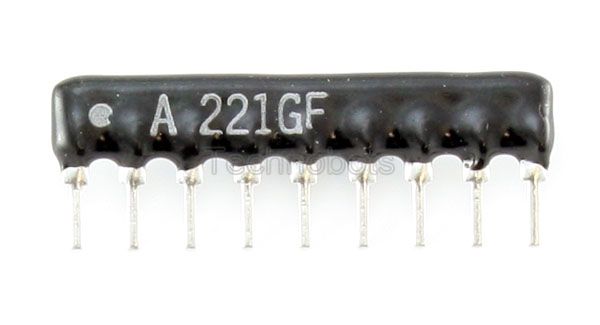

Resistor Network 8-Commoned 100k

    Description

    Thick film resistor network housed in single in line, low profile packages coated with a special epoxy resin. Metal glaze elements on a ceramic substrate.


    • Power rating (per resistor)- 0.125W
    • Tolerance +/- 2%
    • Pitch 2.54mm (0.1")
    • Temperature coefficient: ±100ppm/°C
    • Max.working voltage: 100V
    • Operating temperature range: –55°C to +125°C
    • Height 5.2mm
    • Width 2.5mm
    • Pitch 2.54
    • No of pins 9
    • Length max 22.9

    Resistor Network 8-Commoned 100k

      Product form

      Part No: 7212-832

      Thick film resistor network housed in single in line, low profile packages coated with a special epoxy resin.... Read more

      £0.13 Excl. VAT

        Description

        Thick film resistor network housed in single in line, low profile packages coated with a special epoxy resin. Metal glaze elements on a ceramic substrate.


        • Power rating (per resistor)- 0.125W
        • Tolerance +/- 2%
        • Pitch 2.54mm (0.1")
        • Temperature coefficient: ±100ppm/°C
        • Max.working voltage: 100V
        • Operating temperature range: –55°C to +125°C
        • Height 5.2mm
        • Width 2.5mm
        • Pitch 2.54
        • No of pins 9
        • Length max 22.9
