Description

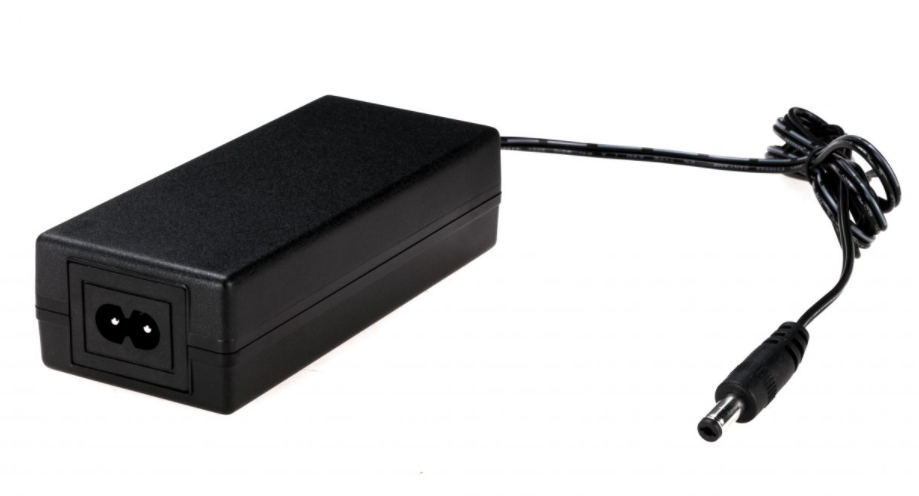

System 345 15V Power Supply.
We tested many power supplies with the original M²Synth and this model gave by far the best results hence making it the ideal pairing with the System 345 modular synth cases. It has a 15Vdc output at 4A (60W max) which can provides sufficient power for up to 2-4 cases fitted with a typical array of modules. The supply has one 2.1mm power plug so to use it for multiple cases, use our splitter cable with extension cables as needed.
IMPORTANT: Suitable only for our power supply boards that provide +/-12V (and +5V). For +15V/-15V systems, the 18V version is required.
The optional 'fig8' mains lead is available to suit many countries standard and can be found here.
- Complies with LVD 62368-1 standards
- Single power: 60W
- Level VI Efficiency Regulations Compliant
- Universal Input 90~264V AC 47~63Hz
- 2.1 x 5.5mm connector
- Approved to cULus, TUV-GS, RCM (C-Tick), PSE, CCC, CB, FCC, CE, RoHS & REACH
- Input voltage:100-240VAC
- Efficiency: VI
