Description

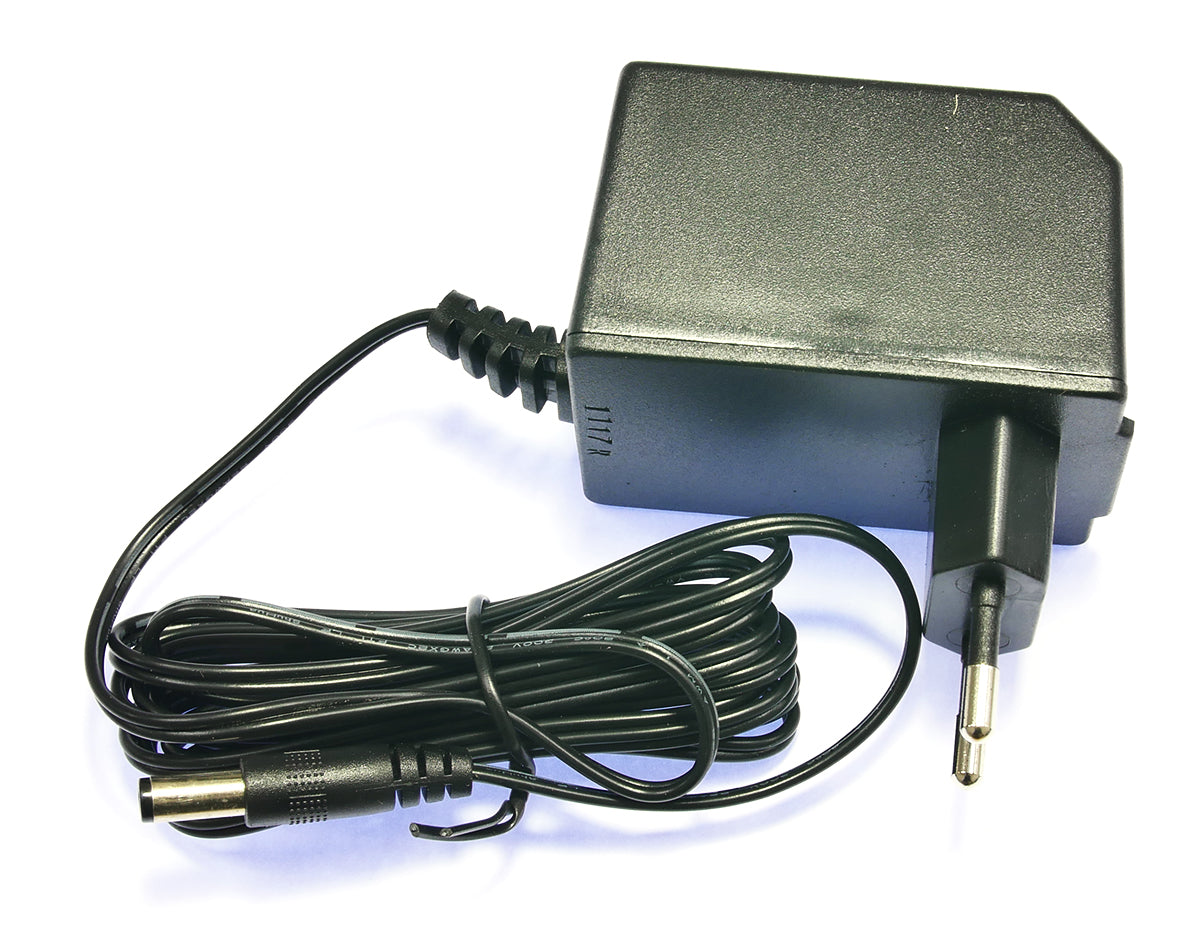

A 12Vac 500mA (note AC not DC). Fitted with a 2.1mm power plug lead (1.8m long). EU Plug only, for UK version see here.
Plug in Linear AC/AC Adaptor 6~7VA output Power
- EN61558-1, EN61558-2-6, EN60065 Approved
- Protection Type: One-Shot Thermal Fuse
- V-0 Rated Enclosure
- Operating Temperature 0~40°C
- RoHS & CE Directive Compliant
- Other output Voltages & Currents available
- Light Weight: 285g only
- ERP II Regulations Compliant
Approved to UK & European Standards
| Voltage/Current |
12Vac, 500mA |
| Power max. |
6W |
| Output voltage |
12Vac |
| Output current max. |
500mA |
The unit to be powered must not draw more current than the maximum continuous current of the power supply, in order to prevent overload. The continuous current draw, should be no more than 80% of the output current max (400mA).
